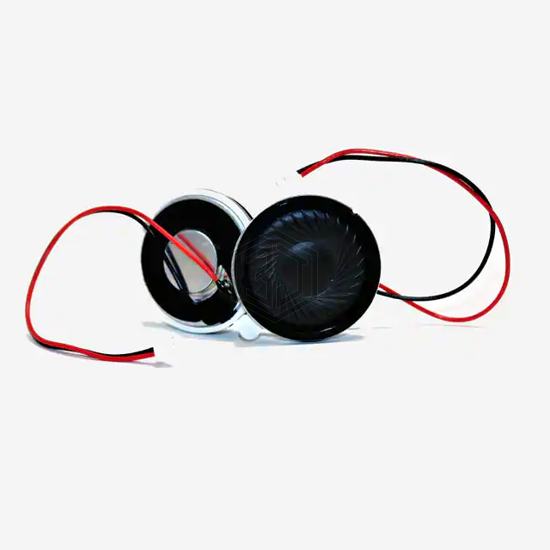

SPEAKER IP67 8OHM 0.5W 103DB
CS28-02W220-05-1X is a Speakers manufactured by Challenge Electronics. SPEAKER IP67 8OHM 0.5W 103DB. Key specifications: size / dimension 1.102" Dia (28.00mm), termination Wire Leads with Connector, ingress protection IP67 - Dust Tight, Waterproof, power - max 1 W.
In Stock: 7,236
| Attribute | Value |
|---|---|
| Product Status | Active |
| Technology | Magnetic |
| Type | General Purpose |
| Frequency Range | 2.2 kHz ~ 10 kHz |
| Frequency - Self Resonant | 2.2kHz |
| Impedance | 8 Ohms |
| Efficiency - dBA | 103.00 |
| Efficiency - Testing | 500mW/100mm |
| Efficiency - Type | Sound Pressure Level (SPL) |
| Power - Rated | 0.5 W |
| Power - Max | 1 W |
| Port Location | Top |
| Shape | Round |
| Material - Cone | Polyethylenimine (PEI) |
| Material - Magnet | Nd-Fe-B |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Ratings | - |
| Termination | Wire Leads with Connector |
| Size / Dimension | 1.102" Dia (28.00mm) |
| Height - Seated (Max) | 0.220" (5.60mm) |
Submit your RFQ for CS28-02W220-05-1X and get a quote within 24 hours.
