SPEAKER IP67 8OHM 1.5W 103DB

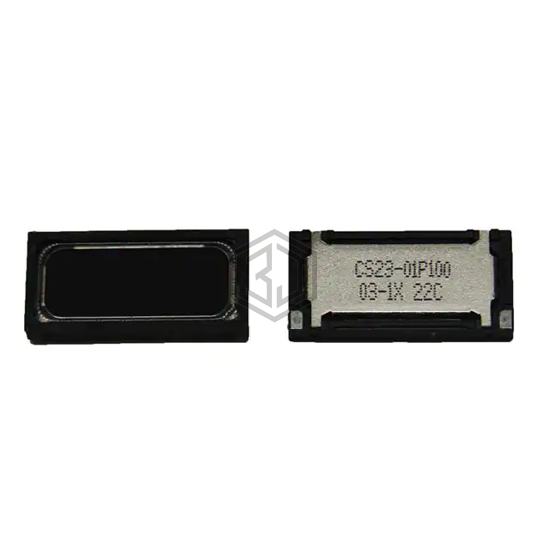

CS23-01P100-03-1X is a Speakers manufactured by Challenge Electronics. SPEAKER IP67 8OHM 1.5W 103DB. Key specifications: size / dimension 0.906" L x 0.433" W (23.00mm x 11.00mm), termination Solder Pads, ingress protection IP67 - Dust Tight, Waterproof, power - max 1.7 W.
In Stock: 873
| Attribute | Value |
|---|---|
| Product Status | Active |
| Technology | - |
| Type | General Purpose |
| Frequency Range | 1 kHz ~ 20 kHz |
| Frequency - Self Resonant | 1kHz |
| Impedance | 8 Ohms |
| Efficiency - dBA | 103.00 |
| Efficiency - Testing | 1.5W/100mm |
| Efficiency - Type | Sound Pressure Level (SPL) |
| Power - Rated | 1.5 W |
| Power - Max | 1.7 W |
| Port Location | Top |
| Shape | Rectangular |
| Material - Cone | Polyetheretherketone (PEEK) |
| Material - Magnet | Nd-Fe-B |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Ratings | - |
| Termination | Solder Pads |
| Size / Dimension | 0.906" L x 0.433" W (23.00mm x 11.00mm) |
| Height - Seated (Max) | 0.146" (3.70mm) |
Submit your RFQ for CS23-01P100-03-1X and get a quote within 24 hours.
