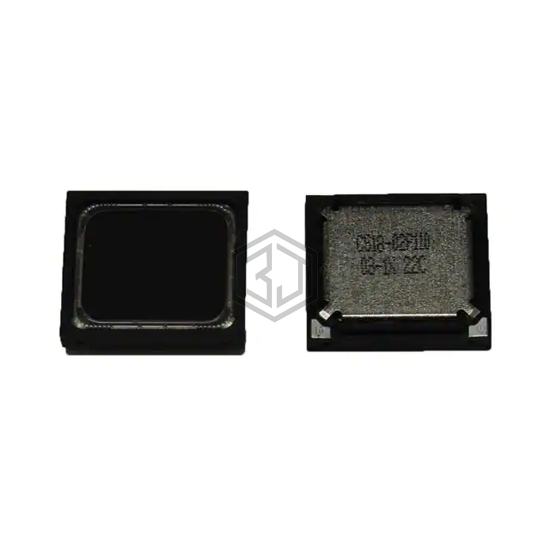

SPEAKER IP67 4OHM 2W 104DB
CS18-02P110-03-1X is a Speakers manufactured by Challenge Electronics. SPEAKER IP67 4OHM 2W 104DB. Key specifications: size / dimension 0.709" L x 0.630" W (18.00mm x 16.00mm), termination Solder Pads, ingress protection IP67 - Dust Tight, Waterproof, power - max 2.2 W.
In Stock: 990
| Attribute | Value |
|---|---|
| Product Status | Active |
| Technology | - |
| Type | General Purpose |
| Frequency Range | 1.1 kHz ~ 20 kHz |
| Frequency - Self Resonant | 1.1kHz |
| Impedance | 4 Ohms |
| Efficiency - dBA | 104.00 |
| Efficiency - Testing | 2W/100mm |
| Efficiency - Type | Sound Pressure Level (SPL) |
| Power - Rated | 2 W |
| Power - Max | 2.2 W |
| Port Location | Top |
| Shape | Rectangular |
| Material - Cone | Polyetheretherketone (PEEK) |
| Material - Magnet | Nd-Fe-B |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Ratings | - |
| Termination | Solder Pads |
| Size / Dimension | 0.709" L x 0.630" W (18.00mm x 16.00mm) |
| Height - Seated (Max) | 0.146" (3.70mm) |
