SURFACE MOUNT SPEAKER 8OHM 1W

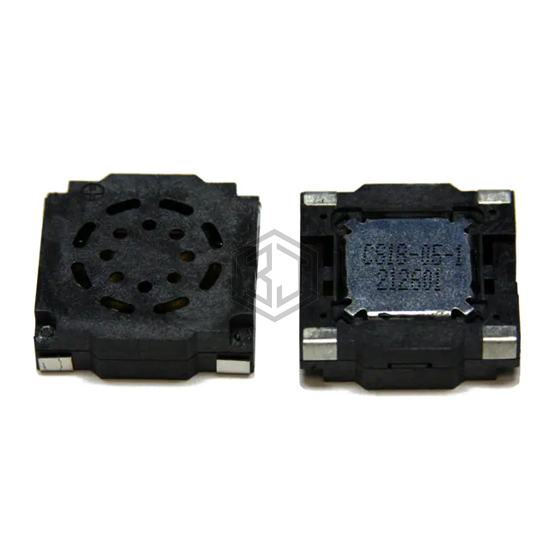

CS18-01S100-05-1 is a Speakers manufactured by Challenge Electronics. SURFACE MOUNT SPEAKER 8OHM 1W. Key specifications: size / dimension 0.709" L x 0.709" W (18.00mm x 18.00mm), termination Solder Pads, power - max 1.5 W, frequency range 1 kHz ~ 20 kHz.
In Stock: 838
| Attribute | Value |
|---|---|
| Product Status | Active |
| Technology | Magnetic |
| Type | General Purpose |
| Frequency Range | 1 kHz ~ 20 kHz |
| Frequency - Self Resonant | 1kHz |
| Impedance | 8 Ohms |
| Efficiency - dBA | 97.00 |
| Efficiency - Testing | 1W/100mm |
| Efficiency - Type | Sound Pressure Level (SPL) |
| Power - Rated | 1 W |
| Power - Max | 1.5 W |
| Port Location | Top |
| Shape | Square |
| Material - Cone | Polyimide (PI) |
| Material - Magnet | SmCo |
| Ingress Protection | - |
| Ratings | - |
| Termination | Solder Pads |
| Size / Dimension | 0.709" L x 0.709" W (18.00mm x 18.00mm) |
| Height - Seated (Max) | 0.201" (5.10mm) |
Submit your RFQ for CS18-01S100-05-1 and get a quote within 24 hours.
