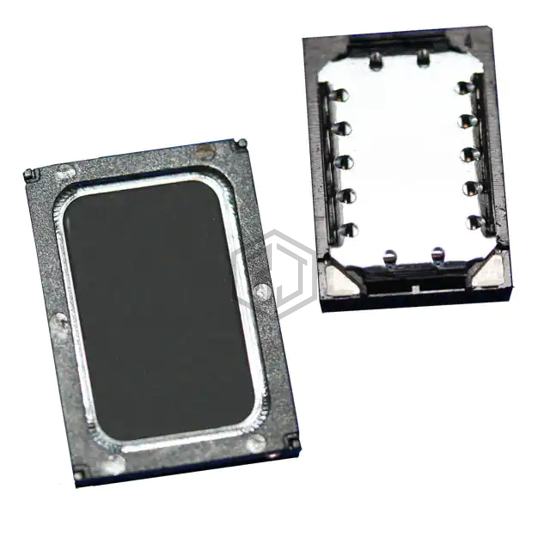

CS17-01P100-03-1X - Challenge Electronics - Speakers

CS17-01P100-03-1X

Challenge Electronics

SPEAKER IP67 8OHM 1W 99DB

CS17-01P100-03-1X is a Speakers manufactured by Challenge Electronics. SPEAKER IP67 8OHM 1W 99DB. Key specifications: size / dimension 0.669" L x 0.472" W (17.00mm x 12.00mm), termination Solder Pads, ingress protection IP67 - Dust Tight, Waterproof, power - max 1.2 W.

In Stock: 1,292

Product Attributes

AttributeValue
Product StatusActive
TechnologyMagnetic
TypeGeneral Purpose
Frequency Range1 kHz ~ 10 kHz
Frequency - Self Resonant1kHz
Impedance8 Ohms
Efficiency - dBA99.00
Efficiency - Testing1W/100mm
Efficiency - TypeSound Pressure Level (SPL)
Power - Rated1 W
Power - Max1.2 W
Port LocationTop
ShapeRectangular
Material - ConePolyetheretherketone (PEEK)
Material - MagnetNd-Fe-B
Ingress ProtectionIP67 - Dust Tight, Waterproof
Ratings-
TerminationSolder Pads
Size / Dimension0.669" L x 0.472" W (17.00mm x 12.00mm)
Height - Seated (Max)0.130" (3.30mm)

Frequently Asked Questions

CS17-01P100-03-1X is a Speakers manufactured by Challenge Electronics. SPEAKER IP67 8OHM 1W 99DB

The size of CS17-01P100-03-1X is 0.669" L x 0.472" W (17.00mm x 12.00mm).

The termination type of CS17-01P100-03-1X is Solder Pads.

The protection rating of CS17-01P100-03-1X is IP67 - Dust Tight, Waterproof.

The resistance of CS17-01P100-03-1X is 8 Ohms.
