SPEAKER IP67 8OHM 1W 97DB

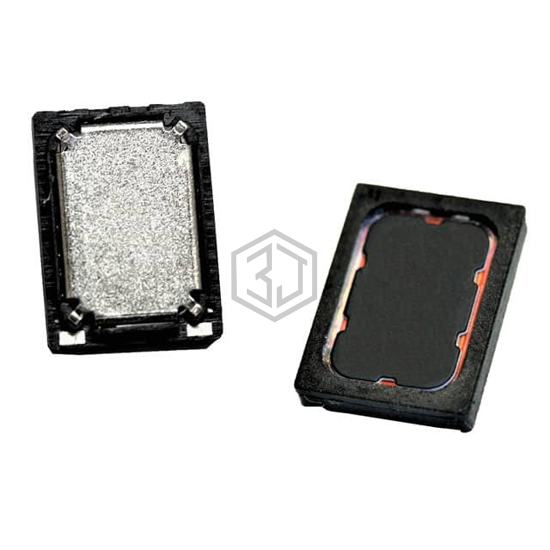

CS15-01P95-03-1X is a Speakers manufactured by Challenge Electronics. SPEAKER IP67 8OHM 1W 97DB. Key specifications: size / dimension 0.591" L x 0.433" W (15.00mm x 11.00mm), termination Solder Pads, ingress protection IP67 - Dust Tight, Waterproof, power - max 1.3 W.
In Stock: 1,410
| Attribute | Value |
|---|---|
| Product Status | Active |
| Technology | Magnetic |
| Type | General Purpose |
| Frequency Range | 950 Hz ~ 20 kHz |
| Frequency - Self Resonant | 950Hz |
| Impedance | 8 Ohms |
| Efficiency - dBA | 97.00 |
| Efficiency - Testing | 1W/100mm |
| Efficiency - Type | Sound Pressure Level (SPL) |
| Power - Rated | 1 W |
| Power - Max | 1.3 W |
| Port Location | Top |
| Shape | Rectangular |
| Material - Cone | Polyetheretherketone (PEEK) |
| Material - Magnet | Nd-Fe-B |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Ratings | - |
| Termination | Solder Pads |
| Size / Dimension | 0.591" L x 0.433" W (15.00mm x 11.00mm) |
| Height - Seated (Max) | 0.138" (3.50mm) |
Submit your RFQ for CS15-01P95-03-1X and get a quote within 24 hours.
