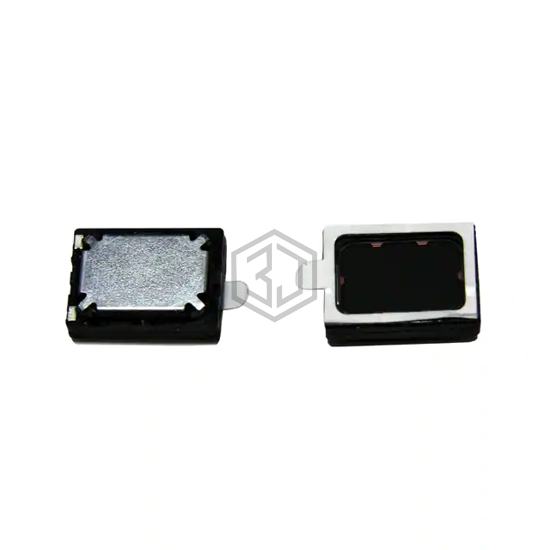

SPEAKER IPX7 8OHM 1W 99DB W/GSKT
CS15-01P100-04-1X is a Speakers manufactured by Challenge Electronics. SPEAKER IPX7 8OHM 1W 99DB W/GSKT. Key specifications: size / dimension 0.591" L x 0.433" W (15.00mm x 11.00mm), termination Solder Pads, ingress protection IPX7, power - max 1.2 W.
In Stock: 881
| Attribute | Value |
|---|---|
| Product Status | Active |
| Technology | Magnetic |
| Type | General Purpose |
| Frequency Range | 1 kHz ~ 20 kHz |
| Frequency - Self Resonant | 1kHz |
| Impedance | 8 Ohms |
| Efficiency - dBA | 99.00 |
| Efficiency - Testing | 1W/100mm |
| Efficiency - Type | Sound Pressure Level (SPL) |
| Power - Rated | 1 W |
| Power - Max | 1.2 W |
| Port Location | Top |
| Shape | Rectangular |
| Material - Cone | Polyetheretherketone (PEEK) |
| Material - Magnet | Nd-Fe-B |
| Ingress Protection | IPX7 |
| Ratings | - |
| Termination | Solder Pads |
| Size / Dimension | 0.591" L x 0.433" W (15.00mm x 11.00mm) |
| Height - Seated (Max) | 0.138" (3.50mm) |
Submit your RFQ for CS15-01P100-04-1X and get a quote within 24 hours.
