RECEIVER IP67 32OHM 110DB

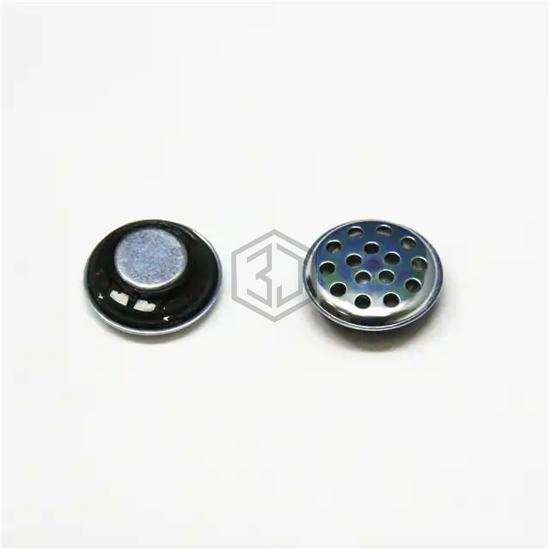

CS13-00P20-03-1X is a Speakers manufactured by Challenge Electronics. RECEIVER IP67 32OHM 110DB. Key specifications: size / dimension 0.512" Dia (13.00mm), termination Solder Pads, ingress protection IP67 - Dust Tight, Waterproof, power - max 20 mW.
In Stock: 961
| Attribute | Value |
|---|---|
| Product Status | Active |
| Technology | Magnetic |
| Type | Receiver |
| Frequency Range | 20 Hz ~ 20 kHz |
| Frequency - Self Resonant | 200Hz |
| Impedance | 32 Ohms |
| Efficiency - dBA | 110.00 |
| Efficiency - Testing | 1mW |
| Efficiency - Type | Sound Pressure Level (SPL) |
| Power - Rated | 10 mW |
| Power - Max | 20 mW |
| Port Location | Top |
| Shape | Round |
| Material - Cone | Polyetheretherketone (PEEK) |
| Material - Magnet | Nd-Fe-B |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Ratings | - |
| Termination | Solder Pads |
| Size / Dimension | 0.512" Dia (13.00mm) |
| Height - Seated (Max) | 0.138" (3.50mm) |
Submit your RFQ for CS13-00P20-03-1X and get a quote within 24 hours.
