CHAMBER ASSEMBLY

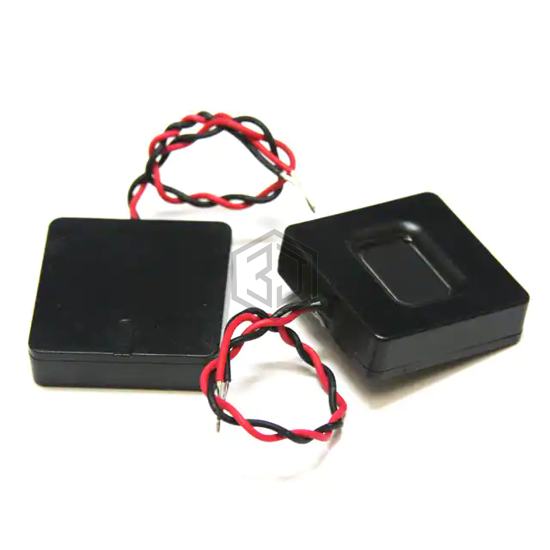

CAC25-01W75-07-1X is a Speakers manufactured by Challenge Electronics. CHAMBER ASSEMBLY. Key specifications: size / dimension 0.984" L x 0.984" W (25.00mm x 25.00mm), termination Wire Leads, ingress protection IPX7, power - max 1.2 W.
In Stock: 1,299
| Attribute | Value |
|---|---|
| Product Status | Active |
| Technology | Magnetic |
| Type | General Purpose, Enclosure Included |
| Frequency Range | 800 Hz ~ 20 kHz |
| Frequency - Self Resonant | 800Hz |
| Impedance | 6 Ohms |
| Efficiency - dBA | 93.00 |
| Efficiency - Testing | 1W/100mm |
| Efficiency - Type | Sound Pressure Level (SPL) |
| Power - Rated | 1 W |
| Power - Max | 1.2 W |
| Port Location | Top |
| Shape | Square |
| Material - Cone | Polyetheretherketone (PEEK) |
| Material - Magnet | Nd-Fe-B |
| Ingress Protection | IPX7 |
| Ratings | - |
| Termination | Wire Leads |
| Size / Dimension | 0.984" L x 0.984" W (25.00mm x 25.00mm) |
| Height - Seated (Max) | 0.276" (7.00mm) |
Submit your RFQ for CAC25-01W75-07-1X and get a quote within 24 hours.
