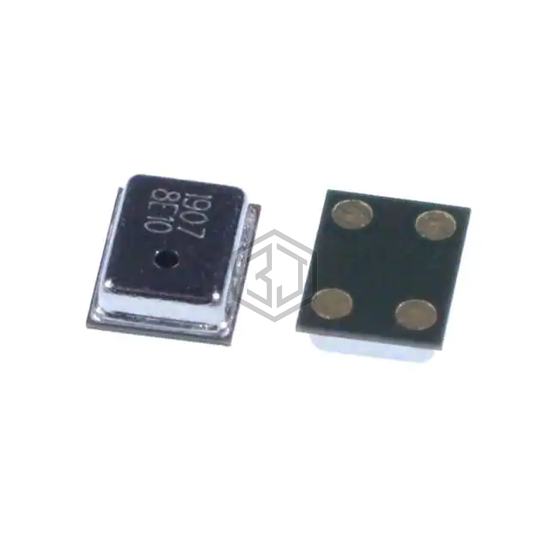

4mm Analog Silicon Microphone
SMO04A-42/1316 is a Microphones manufactured by BeStar Technologies, Inc.. 4mm Analog Silicon Microphone. Key specifications: current - supply 200 µA, size / dimension 0.148" L x 0.116" W (3.76mm x 2.95mm), termination Solder Pads, output type Analog.
In Stock: 95
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | MEMS (Silicon) |
| Output Type | Analog |
| Direction | Omnidirectional |
| Frequency Range | 100 Hz ~ 10 kHz |
| Sensitivity | -42dB ±1dB |
| S/N Ratio | 59dB |
| Impedance | 300 Ohms |
| Voltage - Rated | - |
| Voltage Range | 1.6 V ~ 3.6 V |
| Current - Supply | 200 µA |
| Port Location | Top |
| Ratings | - |
| Termination | Solder Pads |
| Size / Dimension | 0.148" L x 0.116" W (3.76mm x 2.95mm) |
| Height (Max) | 0.043" (1.10mm) |
| Shape | Rectangular |
Submit your RFQ for SMO04A-42/1316 and get a quote within 24 hours.
