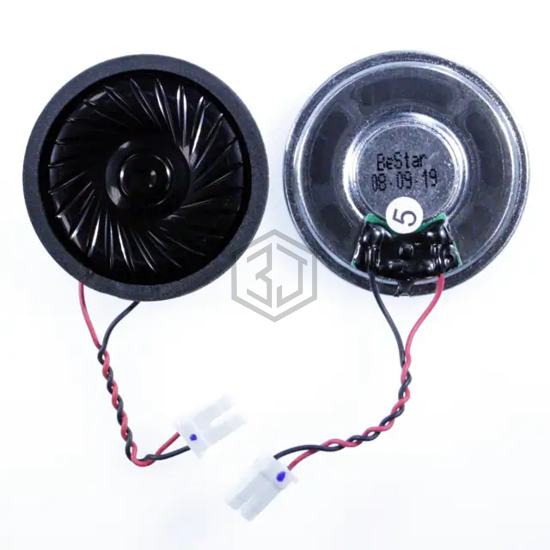

40MM SPEAKER WITH WIRE
BMS40-12B-08H7.0W040J is a Speakers manufactured by BeStar Technologies, Inc.. 40MM SPEAKER WITH WIRE. Key specifications: size / dimension 1.575" Dia (40.00mm), termination Wire Leads with Connector, power - max 2.5 W, frequency range 0 Hz ~ 10 kHz.
In Stock: 25
| Attribute | Value |
|---|---|
| Product Status | Active |
| Technology | Magnetic |
| Type | General Purpose |
| Frequency Range | 0 Hz ~ 10 kHz |
| Frequency - Self Resonant | 500Hz |
| Impedance | 8 Ohms |
| Efficiency - dBA | 80.00 |
| Efficiency - Testing | 1W/1M |
| Efficiency - Type | Sound Pressure Level (SPL) |
| Power - Rated | 2 W |
| Power - Max | 2.5 W |
| Port Location | Top |
| Shape | Round |
| Material - Cone | Polyethylene Naphthalate (PEN) |
| Material - Magnet | Nd-Fe-B |
| Ingress Protection | - |
| Ratings | - |
| Termination | Wire Leads with Connector |
| Size / Dimension | 1.575" Dia (40.00mm) |
| Height - Seated (Max) | 0.276" (7.00mm) |
Submit your RFQ for BMS40-12B-08H7.0W040J and get a quote within 24 hours.
