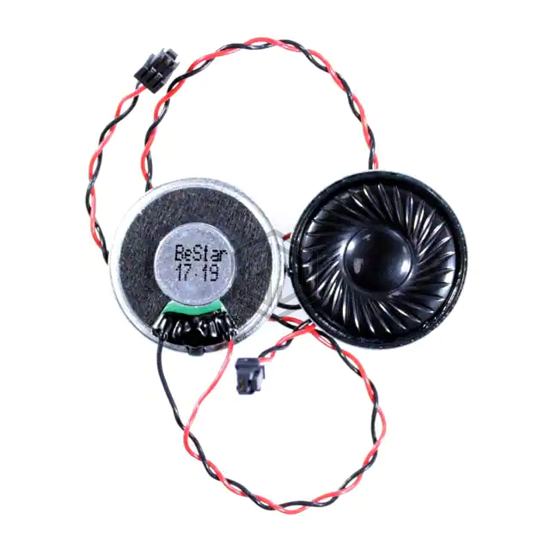

BMS28-12B08H05CW150M - BeStar Technologies, Inc. - Speakers

BMS28-12B08H05CW150M

BeStar Technologies, Inc.

28MM SPEAKER

BMS28-12B08H05CW150M is a Speakers manufactured by BeStar Technologies, Inc.. 28MM SPEAKER. Key specifications: size / dimension 1.102" Dia (28.00mm), termination Wire Leads with Connector, power - max 1.2 W, frequency range 0 Hz ~ 20 kHz.

In Stock: 61

Product Attributes

AttributeValue
Product StatusActive
TechnologyMagnetic
TypeGeneral Purpose
Frequency Range0 Hz ~ 20 kHz
Frequency - Self Resonant650Hz
Impedance8 Ohms
Efficiency - dBA90.00
Efficiency - Testing100mW/100mm
Efficiency - TypeSound Pressure Level (SPL)
Power - Rated800 mW
Power - Max1.2 W
Port LocationTop
ShapeRound
Material - ConePolyethylene Naphthalate (PEN)
Material - MagnetNd-Fe-B
Ingress Protection-
Ratings-
TerminationWire Leads with Connector
Size / Dimension1.102" Dia (28.00mm)
Height - Seated (Max)0.197" (5.00mm)

Frequently Asked Questions

BMS28-12B08H05CW150M is a Speakers manufactured by BeStar Technologies, Inc.. 28MM SPEAKER

The size of BMS28-12B08H05CW150M is 1.102" Dia (28.00mm).

The termination type of BMS28-12B08H05CW150M is Wire Leads with Connector.

The power rating of BMS28-12B08H05CW150M is 1.2 W.

The resistance of BMS28-12B08H05CW150M is 8 Ohms.
