OVAL, RECIEVER, 0.5W

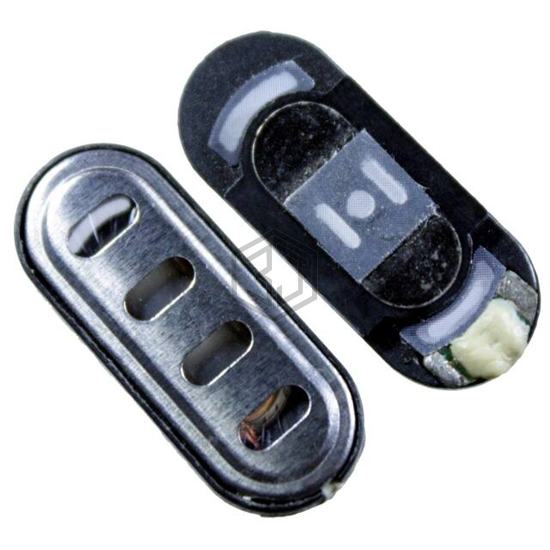

BMS2209-11C-08H3.7 is a Speakers manufactured by BeStar Technologies, Inc.. OVAL, RECIEVER, 0.5W. Key specifications: size / dimension 0.866" L x 0.354" W (22.00mm x 9.00mm), termination Solder Pads, power - max 1 W, frequency range 900 Hz ~ 20 kHz.
In Stock: 3,351
| Attribute | Value |
|---|---|
| Product Status | Active |
| Technology | Magnetic |
| Type | General Purpose |
| Frequency Range | 900 Hz ~ 20 kHz |
| Frequency - Self Resonant | 900Hz |
| Impedance | 8 Ohms |
| Efficiency - dBA | 90.00 |
| Efficiency - Testing | 100mW/100cm |
| Efficiency - Type | Sound Pressure Level (SPL) |
| Power - Rated | 500 mW |
| Power - Max | 1 W |
| Port Location | - |
| Shape | Rectangular |
| Material - Cone | - |
| Material - Magnet | Nd-Fe-B |
| Ingress Protection | - |
| Ratings | - |
| Termination | Solder Pads |
| Size / Dimension | 0.866" L x 0.354" W (22.00mm x 9.00mm) |
| Height - Seated (Max) | 0.146" (3.70mm) |
Submit your RFQ for BMS2209-11C-08H3.7 and get a quote within 24 hours.
