MICRO SPEAKER, SPRING CONTACTS

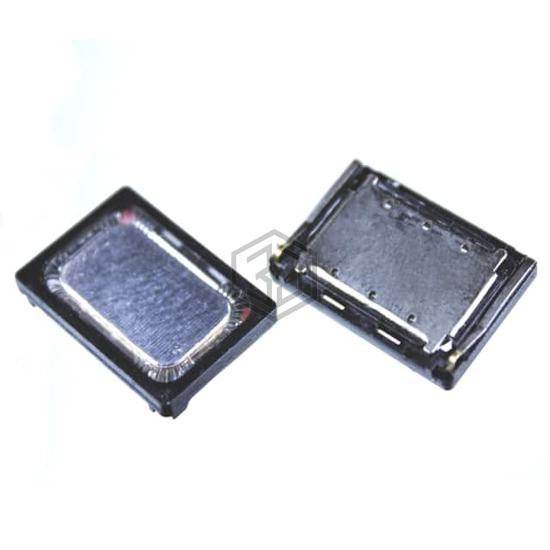

BMS2014F-11C-08H03P is a Speakers manufactured by BeStar Technologies, Inc.. MICRO SPEAKER, SPRING CONTACTS. Key specifications: size / dimension 0.787" L x 0.551" W (20.00mm x 14.00mm), termination Spring Type, power - max 1 W, frequency range 380 Hz ~ 20 kHz.
In Stock: 3,277
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Technology | Magnetic |
| Type | General Purpose |
| Frequency Range | 380 Hz ~ 20 kHz |
| Frequency - Self Resonant | 380Hz |
| Impedance | 8 Ohms |
| Efficiency - dBA | 83.50 |
| Efficiency - Testing | 100mW/100cm |
| Efficiency - Type | Sound Pressure Level (SPL) |
| Power - Rated | 700 mW |
| Power - Max | 1 W |
| Port Location | - |
| Shape | Rectangular |
| Material - Cone | - |
| Material - Magnet | Nd-Fe-B |
| Ingress Protection | - |
| Ratings | - |
| Termination | Spring Type |
| Size / Dimension | 0.787" L x 0.551" W (20.00mm x 14.00mm) |
| Height - Seated (Max) | 0.118" (3.00mm) |
Submit your RFQ for BMS2014F-11C-08H03P and get a quote within 24 hours.
