20MM SPEAKER

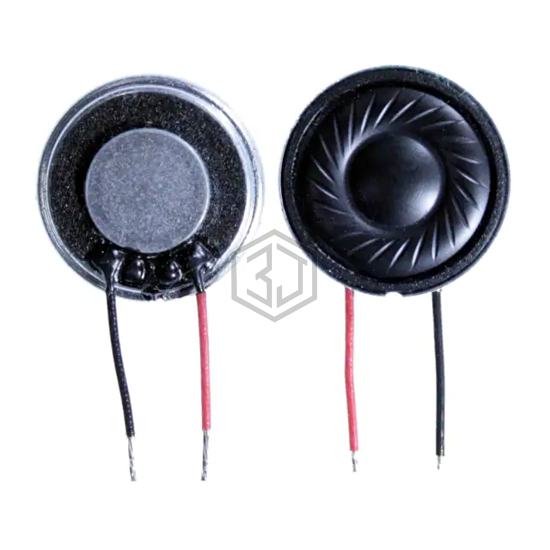

BMS20-12-08H3.2RW020-YL is a Speakers manufactured by BeStar Technologies, Inc.. 20MM SPEAKER. Key specifications: size / dimension 0.787" Dia (20.00mm), termination Wire Leads with Connector, power - max 1.2 W, frequency range 0 Hz ~ 20 kHz.
In Stock: 5,275
| Attribute | Value |
|---|---|
| Product Status | Active |
| Technology | Magnetic |
| Type | General Purpose |
| Frequency Range | 0 Hz ~ 20 kHz |
| Frequency - Self Resonant | 850Hz |
| Impedance | 8 Ohms |
| Efficiency - dBA | 87.00 |
| Efficiency - Testing | 100mW/100mm |
| Efficiency - Type | Sound Pressure Level (SPL) |
| Power - Rated | 1 W |
| Power - Max | 1.2 W |
| Port Location | Top |
| Shape | Round |
| Material - Cone | Polyester, Polyethylene Terephthalate (PET) |
| Material - Magnet | Nd-Fe-B |
| Ingress Protection | - |
| Ratings | - |
| Termination | Wire Leads with Connector |
| Size / Dimension | 0.787" Dia (20.00mm) |
| Height - Seated (Max) | 0.126" (3.20mm) |
Submit your RFQ for BMS20-12-08H3.2RW020-YL and get a quote within 24 hours.
