BMS1813F-11C-08H4.5-BBS152 - BeStar Technologies, Inc. - Speakers

BMS1813F-11C-08H4.5-BBS152

BeStar Technologies, Inc.

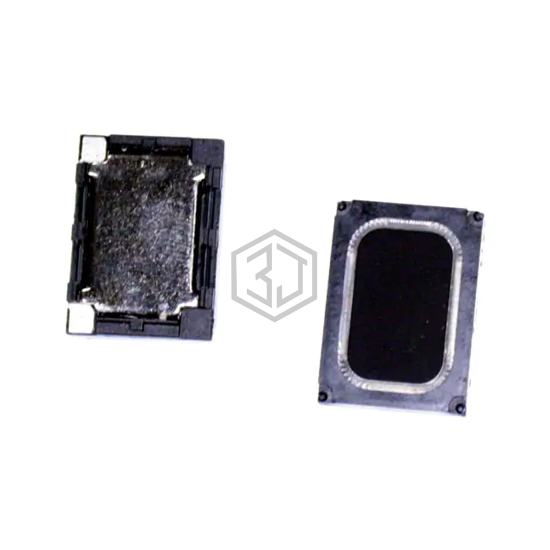

18X13 MM SPEAKER

BMS1813F-11C-08H4.5-BBS152 is a Speakers manufactured by BeStar Technologies, Inc.. 18X13 MM SPEAKER. Key specifications: size / dimension 0.709" L x 0.512" W (18.00mm x 13.00mm), termination Solder Pads, power - max 1 W, frequency range 0 Hz ~ 20 kHz.

In Stock: 60

Product Attributes

AttributeValue
Product StatusActive
TechnologyMagnetic
TypeGeneral Purpose
Frequency Range0 Hz ~ 20 kHz
Frequency - Self Resonant850Hz
Impedance8 Ohms
Efficiency - dBA93.00
Efficiency - Testing700mW/100mm
Efficiency - TypeSound Pressure Level (SPL)
Power - Rated700 mW
Power - Max1 W
Port LocationTop
ShapeRectangle
Material - ConePolyester, Polyethylene Terephthalate (PET)
Material - MagnetNd-Fe-B
Ingress Protection-
Ratings-
TerminationSolder Pads
Size / Dimension0.709" L x 0.512" W (18.00mm x 13.00mm)
Height - Seated (Max)0.177" (4.50mm)

Frequently Asked Questions

BMS1813F-11C-08H4.5-BBS152 is a Speakers manufactured by BeStar Technologies, Inc.. 18X13 MM SPEAKER

The size of BMS1813F-11C-08H4.5-BBS152 is 0.709" L x 0.512" W (18.00mm x 13.00mm).

The termination type of BMS1813F-11C-08H4.5-BBS152 is Solder Pads.

The power rating of BMS1813F-11C-08H4.5-BBS152 is 1 W.

The resistance of BMS1813F-11C-08H4.5-BBS152 is 8 Ohms.
