ELECTRO MAGNET DYNAMIC SPEAKER

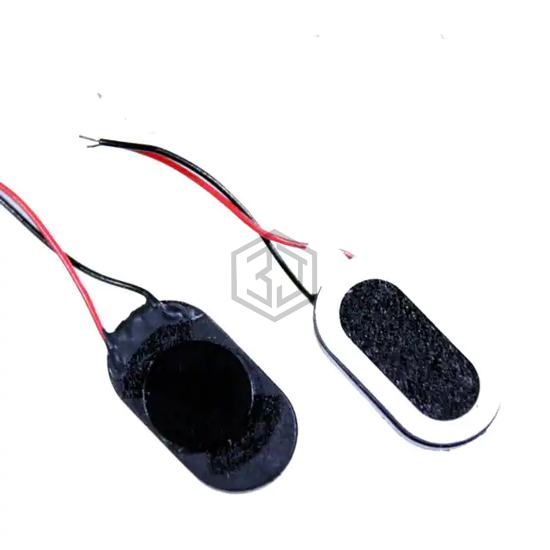

BMS1018-11C-08H05RW025 is a Speakers manufactured by BeStar Technologies, Inc.. ELECTRO MAGNET DYNAMIC SPEAKER. Key specifications: size / dimension 0.709" L x 0.394" W (18.00mm x 10.00mm), termination Wire Leads, power - max 1 W, frequency range 1.4 kHz ~ 15 kHz.
In Stock: 210
| Attribute | Value |
|---|---|
| Product Status | Active |
| Technology | Magnetic |
| Type | General Purpose |
| Frequency Range | 1.4 kHz ~ 15 kHz |
| Frequency - Self Resonant | 1.4kHz |
| Impedance | 8 Ohms |
| Efficiency - dBA | 86.00 |
| Efficiency - Testing | 100mW/100cm |
| Efficiency - Type | Sound Pressure Level (SPL) |
| Power - Rated | 800 mW |
| Power - Max | 1 W |
| Port Location | - |
| Shape | Rectangle |
| Material - Cone | Polyethylene Naphthalate (PEN) |
| Material - Magnet | Nd-Fe-B |
| Ingress Protection | - |
| Ratings | - |
| Termination | Wire Leads |
| Size / Dimension | 0.709" L x 0.394" W (18.00mm x 10.00mm) |
| Height - Seated (Max) | 0.157" (4.00mm) |
Submit your RFQ for BMS1018-11C-08H05RW025 and get a quote within 24 hours.
