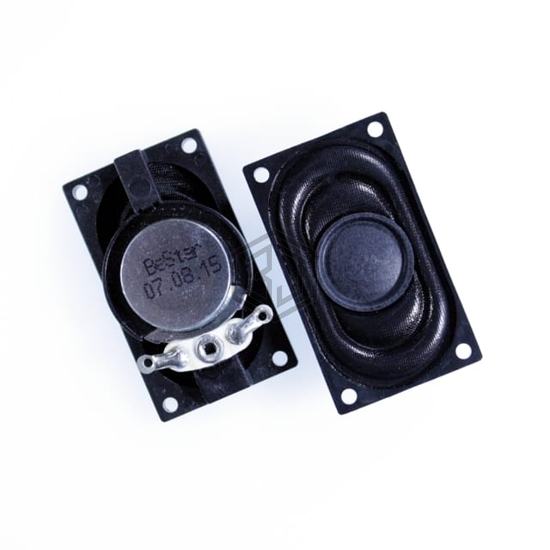

RECTANGLULAR SPEAKER, 8 OHM, 2W
BLS2035-11-08H7.6 is a Speakers manufactured by BeStar Technologies, Inc.. RECTANGLULAR SPEAKER, 8 OHM, 2W. Key specifications: size / dimension 1.378" L x 0.787" W (35.00mm x 20.00mm), termination Solder Pads, power - max 3 W, frequency range 570 Hz ~ 10 kHz.
In Stock: 95
| Attribute | Value |
|---|---|
| Product Status | Active |
| Technology | Magnetic |
| Type | General Purpose |
| Frequency Range | 570 Hz ~ 10 kHz |
| Frequency - Self Resonant | 570Hz |
| Impedance | 8 Ohms |
| Efficiency - dBA | 86.00 |
| Efficiency - Testing | 100mW/100cm |
| Efficiency - Type | Sound Pressure Level (SPL) |
| Power - Rated | 2 W |
| Power - Max | 3 W |
| Port Location | - |
| Shape | Rectangular |
| Material - Cone | - |
| Material - Magnet | Nd-Fe-B |
| Ingress Protection | - |
| Ratings | - |
| Termination | Solder Pads |
| Size / Dimension | 1.378" L x 0.787" W (35.00mm x 20.00mm) |
| Height - Seated (Max) | 0.307" (7.80mm) |
Submit your RFQ for BLS2035-11-08H7.6 and get a quote within 24 hours.
