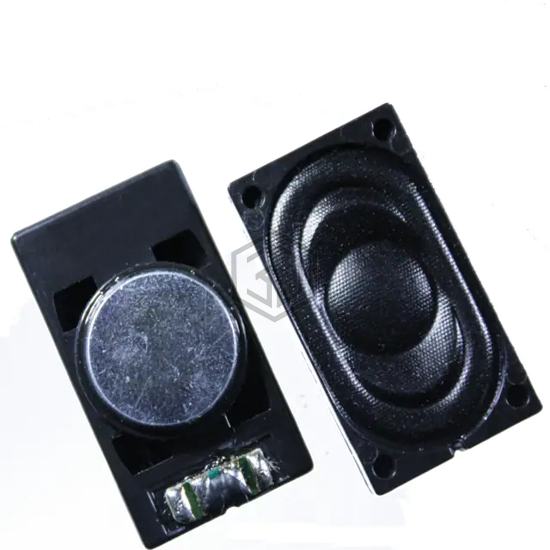

RECTANGULAR SPEAKER, 8 OHM, 1W
BLS1425-11-08H5.2 is a Speakers manufactured by BeStar Technologies, Inc.. RECTANGULAR SPEAKER, 8 OHM, 1W. Key specifications: size / dimension 0.984" L x 0.551" W (25.00mm x 14.00mm), termination Solder Pads, power - max 1.5 W, frequency range 1.2 kHz ~ 20 kHz.
In Stock: 95
| Attribute | Value |
|---|---|
| Product Status | Active |
| Technology | Magnetic |
| Type | General Purpose |
| Frequency Range | 1.2 kHz ~ 20 kHz |
| Frequency - Self Resonant | 1.2kHz |
| Impedance | 8 Ohms |
| Efficiency - dBA | 88.00 |
| Efficiency - Testing | 100mW/100cm |
| Efficiency - Type | Sound Pressure Level (SPL) |
| Power - Rated | 1 W |
| Power - Max | 1.5 W |
| Port Location | - |
| Shape | Rectangular |
| Material - Cone | - |
| Material - Magnet | Nd-Fe-B |
| Ingress Protection | - |
| Ratings | - |
| Termination | Solder Pads |
| Size / Dimension | 0.984" L x 0.551" W (25.00mm x 14.00mm) |
| Height - Seated (Max) | 0.205" (5.20mm) |
Submit your RFQ for BLS1425-11-08H5.2 and get a quote within 24 hours.
