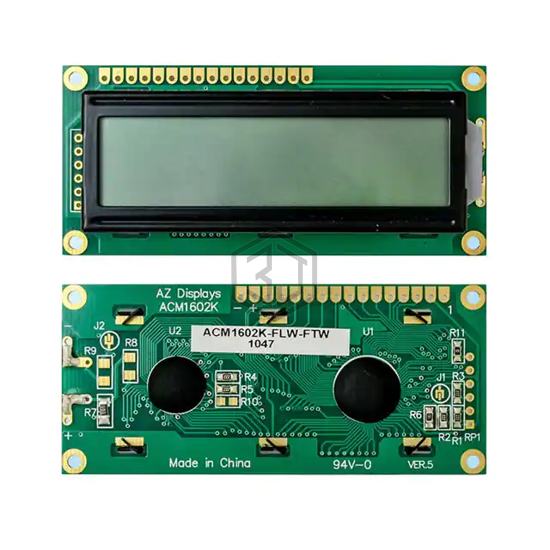

16X2 CHARACTER LCD TRANSFLECTIVE
ACM1602K-FL-GBW is a Display Modules - LCD, OLED Character and Numeric manufactured by AZ Displays. 16X2 CHARACTER LCD TRANSFLECTIVE. Key specifications: operating temperature -20°C ~ 70°C, voltage - supply 4.75V ~ 5.25V, display type STN - Super-Twisted Nematic, TN - Twisted Nematic.
In Stock: 3,796
| Attribute | Value |
|---|---|
| Product Status | Active |
| Number of Characters | - |
| Display Format | 16 x 2 |
| Character Format | 5 x 8 Dots |
| Display Type | STN - Super-Twisted Nematic, TN - Twisted Nematic |
| Display Mode | Transflective |
| Character Size | 5.23mm H x 3.00mm W |
| Outline L x W x H | 80.00mm x 36.00mm x 13.50mm |
| Viewing Area | 64.50mm L x 16.40mm W |
| Backlight | LED |
| Voltage - Supply | 4.75V ~ 5.25V |
| Dot Size | 0.56mm W x 0.61mm H |
| Interface | - |
| Controller Type | SPLC780D1 |
| Operating Temperature | -20°C ~ 70°C |
| Text Color | - |
| Background Color | - |
Submit your RFQ for ACM1602K-FL-GBW and get a quote within 24 hours.
