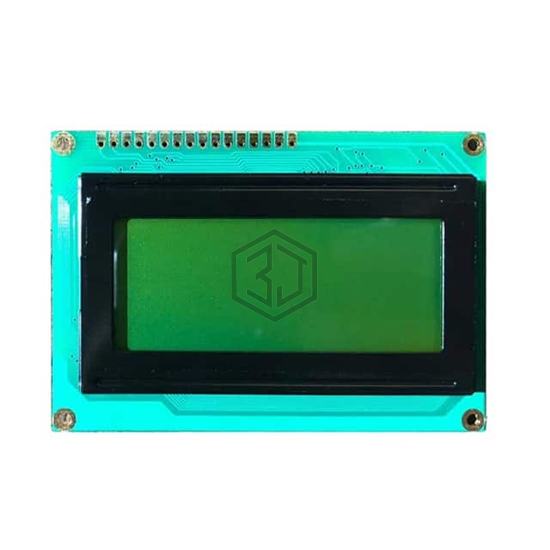

16X1 CHARACTER LCD REFLECTIVE
ACM1601C-RN-YBH is a Display Modules - LCD, OLED Character and Numeric manufactured by AZ Displays. 16X1 CHARACTER LCD REFLECTIVE. Key specifications: operating temperature -20°C ~ 70°C, voltage - supply 2.7V ~ 5.5V, display type FSTN - Film Super-Twisted Nematic, STN - Super-Twisted Nematic, TN - Twisted Nematic.
In Stock: 101
| Attribute | Value |
|---|---|
| Product Status | Active |
| Number of Characters | - |
| Display Format | 16 x 1 |
| Character Format | 5 x 8 Dots |
| Display Type | FSTN - Film Super-Twisted Nematic, STN - Super-Twisted Nematic, TN - Twisted Nematic |
| Display Mode | Reflective |
| Character Size | 6.56mm H x 3.07mm W |
| Outline L x W x H | 80.00mm x 36.00mm x 13.50mm |
| Viewing Area | 64.50mm L x 14.00mm W |
| Backlight | LED |
| Voltage - Supply | 2.7V ~ 5.5V |
| Dot Size | 0.55mm W x 0.57mm H |
| Interface | - |
| Controller Type | ST7066U |
| Operating Temperature | -20°C ~ 70°C |
| Text Color | - |
| Background Color | - |
Submit your RFQ for ACM1601C-RN-YBH and get a quote within 24 hours.
