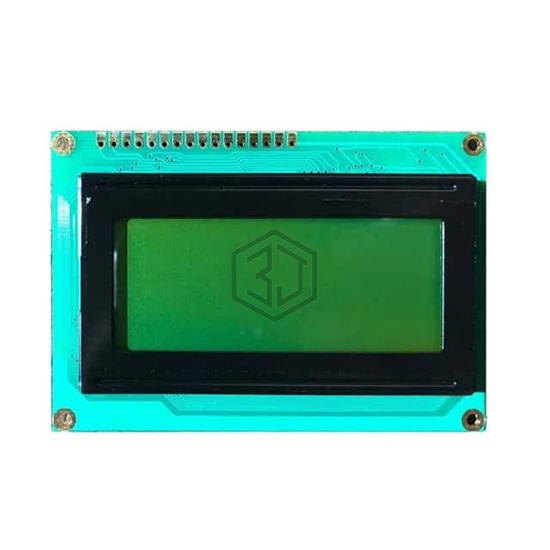

ACM1601C-NLW-BBW - AZ Displays - Display Modules - LCD, OLED Character and Numeric

ACM1601C-NLW-BBW

AZ Displays

16X1 CHARACTER LCD TRANSMISSIVE

ACM1601C-NLW-BBW is a Display Modules - LCD, OLED Character and Numeric manufactured by AZ Displays. 16X1 CHARACTER LCD TRANSMISSIVE. Key specifications: operating temperature -20°C ~ 70°C, voltage - supply 2.7V ~ 5.5V, display type FSTN - Film Super-Twisted Nematic, STN - Super-Twisted Nematic, TN - Twisted Nematic.

In Stock: 3

Product Attributes

AttributeValue
Product StatusActive
Number of Characters-
Display Format16 x 1
Character Format5 x 8 Dots
Display TypeFSTN - Film Super-Twisted Nematic, STN - Super-Twisted Nematic, TN - Twisted Nematic
Display ModeTransmissive
Character Size6.56mm H x 3.07mm W
Outline L x W x H80.00mm x 36.00mm x 9.50mm
Viewing Area64.50mm L x 14.00mm W
BacklightLED
Voltage - Supply2.7V ~ 5.5V
Dot Size0.55mm W x 0.57mm H
Interface-
Controller TypeST7066U
Operating Temperature-20°C ~ 70°C
Text Color-
Background Color-

Frequently Asked Questions

ACM1601C-NLW-BBW is a Display Modules - LCD, OLED Character and Numeric manufactured by AZ Displays. 16X1 CHARACTER LCD TRANSMISSIVE

The operating temperature range of ACM1601C-NLW-BBW is -20°C ~ 70°C.

The supply voltage of ACM1601C-NLW-BBW is 2.7V ~ 5.5V.

The display type of ACM1601C-NLW-BBW is FSTN - Film Super-Twisted Nematic, STN - Super-Twisted Nematic, TN - Twisted Nematic.
