0.3MM PITCH - 25 POS - RT ANGLE

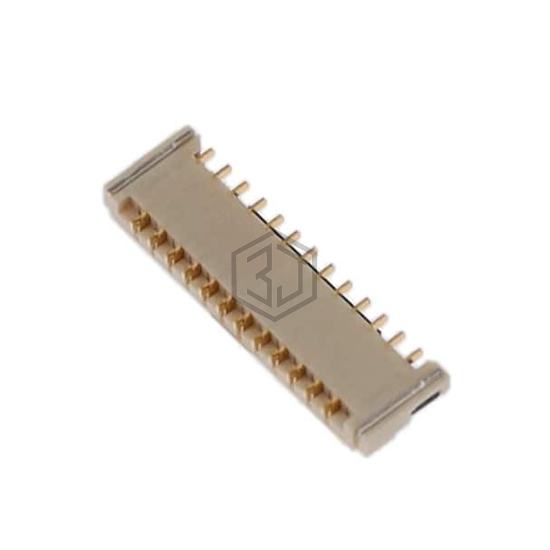

046844725002846+ is a FFC, FPC (Flat Flexible) Connectors manufactured by KYOCERA AVX. 0.3MM PITCH - 25 POS - RT ANGLE. Key specifications: mounting type Surface Mount, Right Angle, operating temperature -40°C ~ 85°C, voltage rating 50V, housing material Plastic.
In Stock: 5,000
| Attribute | Value |
|---|---|
| Product Status | Active |
| Flat Flex Type | FPC |
| Mounting Type | Surface Mount, Right Angle |
| Connector/Contact Type | Contacts, Bottom |
| Number of Positions | 25 |
| Pitch | 0.012" (0.30mm) |
| Termination | Solder |
| FFC, FCB Thickness | 0.20mm |
| Height Above Board | 0.037" (0.95mm) |
| Locking Feature | Flip Lock |
| Cable End Type | Tabbed |
| Contact Material | Copper Alloy |
| Contact Finish | Gold |
| Housing Material | Plastic |
| Actuator Material | Plastic |
| Features | Zero Insertion Force (ZIF) |
| Voltage Rating | 50V |
| Operating Temperature | -40°C ~ 85°C |
| Material Flammability Rating | UL94 HB |
