0.5MM PITCH - 30 POS - RT ANGLE

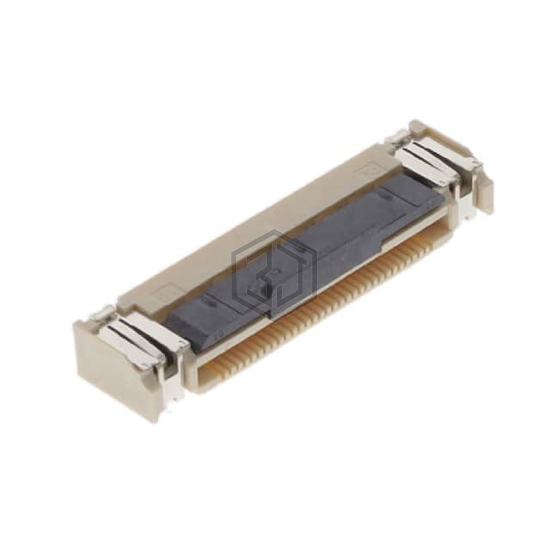

046810630003846+ is a FFC, FPC (Flat Flexible) Connectors manufactured by KYOCERA AVX. 0.5MM PITCH - 30 POS - RT ANGLE. Key specifications: mounting type Surface Mount, Right Angle, operating temperature -40°C ~ 125°C, voltage rating 50V, housing material Plastic.
In Stock: 200
| Attribute | Value |
|---|---|
| Product Status | Active |
| Flat Flex Type | FFC, FPC |
| Mounting Type | Surface Mount, Right Angle |
| Connector/Contact Type | Contacts, Bottom |
| Number of Positions | 30 |
| Pitch | 0.020" (0.50mm) |
| Termination | Solder |
| FFC, FCB Thickness | 0.30mm |
| Height Above Board | 0.161" (4.10mm) |
| Locking Feature | - |
| Cable End Type | Notched, Tapered |
| Contact Material | Copper Alloy |
| Contact Finish | Gold |
| Housing Material | Plastic |
| Actuator Material | - |
| Features | Solder Retention |
| Voltage Rating | 50V |
| Operating Temperature | -40°C ~ 125°C |
| Material Flammability Rating | - |
Submit your RFQ for 046810630003846+ and get a quote within 24 hours.
