0.5MM PITCH - 80 POS - RIGHT ANG

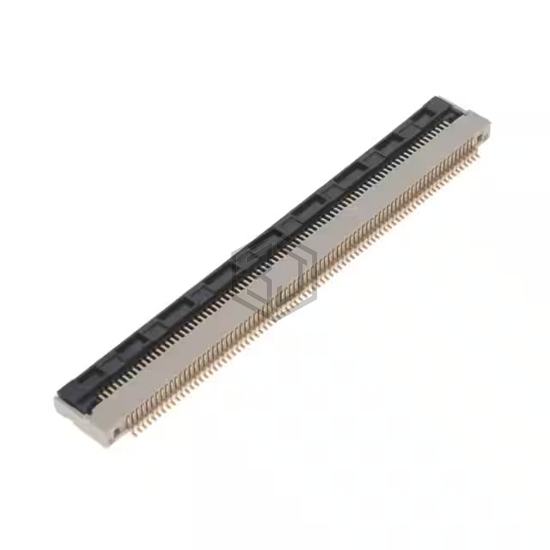

046288080000846+ is a FFC, FPC (Flat Flexible) Connectors manufactured by KYOCERA AVX. 0.5MM PITCH - 80 POS - RIGHT ANG. Key specifications: mounting type Surface Mount, Right Angle, operating temperature -40°C ~ 105°C, voltage rating 50V, housing material Plastic.
In Stock: 3,974
| Attribute | Value |
|---|---|
| Product Status | Active |
| Flat Flex Type | FFC, FPC |
| Mounting Type | Surface Mount, Right Angle |
| Connector/Contact Type | Contacts, Bottom |
| Number of Positions | 80 |
| Pitch | 0.020" (0.50mm) |
| Termination | Solder |
| FFC, FCB Thickness | 0.30mm |
| Height Above Board | 0.079" (2.00mm) |
| Locking Feature | Flip Lock |
| Cable End Type | Tabbed |
| Contact Material | Copper Alloy |
| Contact Finish | Gold |
| Housing Material | Plastic |
| Actuator Material | - |
| Features | Solder Retention, Zero Insertion Force (ZIF) |
| Voltage Rating | 50V |
| Operating Temperature | -40°C ~ 105°C |
| Material Flammability Rating | - |
