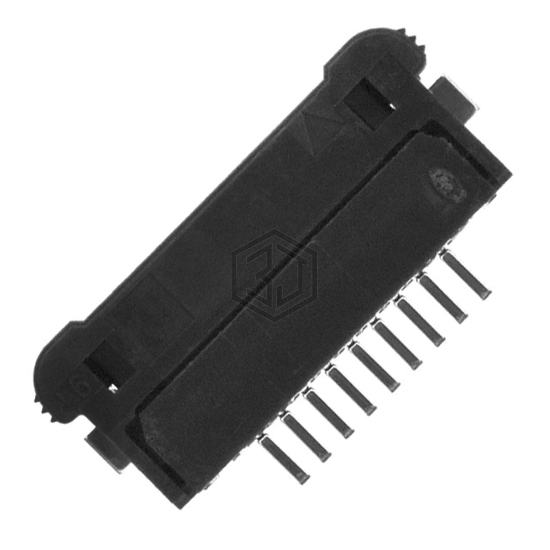

CONN FFC BOTTOM 9POS 1.00MM R/A
006200509130000+ is a FFC, FPC (Flat Flexible) Connectors manufactured by KYOCERA AVX. CONN FFC BOTTOM 9POS 1.00MM R/A. Key specifications: mounting type Surface Mount, Right Angle, operating temperature -20°C ~ 85°C, voltage rating 50V, housing material Plastic.
In Stock: 3,609
| Attribute | Value |
|---|---|
| Product Status | Active |
| Flat Flex Type | FFC, FPC |
| Mounting Type | Surface Mount, Right Angle |
| Connector/Contact Type | Contacts, Bottom |
| Number of Positions | 9 |
| Pitch | 0.039" (1.00mm) |
| Termination | Solder |
| FFC, FCB Thickness | 0.30mm |
| Height Above Board | 0.114" (2.90mm) |
| Locking Feature | Slide Lock |
| Cable End Type | Straight |
| Contact Material | Copper Alloy |
| Contact Finish | Gold |
| Housing Material | Plastic |
| Actuator Material | - |
| Features | Zero Insertion Force (ZIF) |
| Voltage Rating | 50V |
| Operating Temperature | -20°C ~ 85°C |
| Material Flammability Rating | - |
Submit your RFQ for 006200509130000+ and get a quote within 24 hours.
