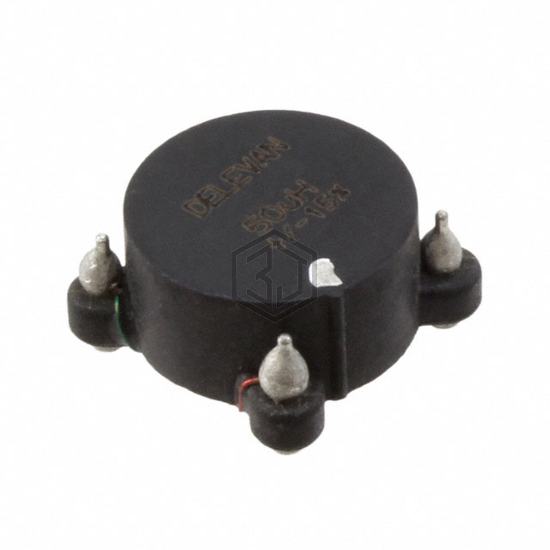

INDUCT ARRAY 2 COIL 50UH SMD
4448R-124L is a Arrays, Signal Transformers manufactured by API Delevan Inc.. INDUCT ARRAY 2 COIL 50UH SMD. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 125°C, package / case Nonstandard, size / dimension 0.530" L x 0.530" W (13.46mm x 13.46mm).
In Stock: 500
| Attribute | Value |
|---|---|
| Product Status | Active |
| Number of Coils | 2 |
| Inductance - Connected In Parallel | 50 µH |
| Inductance - Connected In Series | 200 µH |
| Tolerance | ±15% |
| Current Rating - Parallel | 1.5 A |
| Current Rating - Series | 750 mA |
| Current Saturation - Parallel | - |
| Current Saturation - Series | - |
| DC Resistance (DCR) - Parallel | 111mOhm Max |
| DC Resistance (DCR) - Series | 444mOhm Max |
| Shielding | Unshielded |
| Ratings | - |
| Operating Temperature | -55°C ~ 125°C |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Size / Dimension | 0.530" L x 0.530" W (13.46mm x 13.46mm) |
| Height | 0.310" (7.87mm) |
