IC GATE DRVR HIGH-SIDE 8MSOP

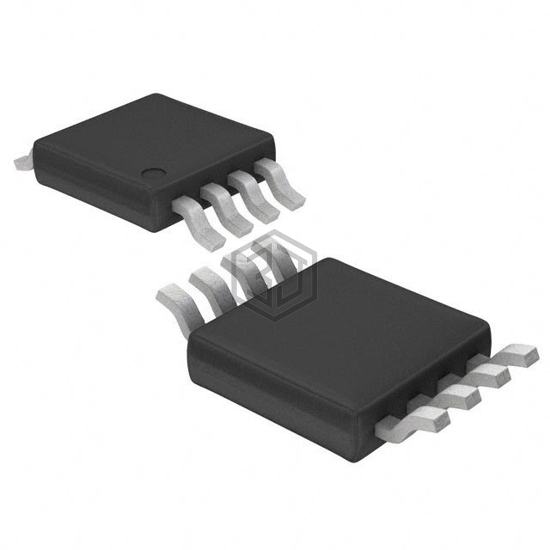

LTC1693-5CMS8#PBF is a PMIC - Gate Drivers manufactured by Analog Devices Inc.. IC GATE DRVR HIGH-SIDE 8MSOP. Key specifications: mounting type Surface Mount, operating temperature 0°C ~ 150°C (TJ), voltage - supply 4.5V ~ 13.2V, package / case 8-TSSOP, 8-MSOP (0.118", 3.00mm Width).
In Stock: 7,817
| Attribute | Value |
|---|---|
| Product Status | Active |
| Driven Configuration | High-Side |
| Channel Type | Single |
| Number of Drivers | 1 |
| Gate Type | P-Channel MOSFET |
| Voltage - Supply | 4.5V ~ 13.2V |
| Logic Voltage - VIL, VIH | 1.7V, 2.2V |
| Current - Peak Output (Source, Sink) | 1.5A, 1.5A |
| Input Type | Inverting, Non-Inverting |
| High Side Voltage - Max (Bootstrap) | - |
| Rise / Fall Time (Typ) | 16ns, 16ns |
| Operating Temperature | 0°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) |
| Supplier Device Package | 8-MSOP |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MCP1416T-E/OTVAO | Microchip Technology | IC GATE DRVR LOW-SIDE SOT23-5 | 89% | View |
| MCP1416RT-E/OTVAO | Microchip Technology | IC GATE DRVR LOW-SIDE SOT23-5 | 89% | View |
| MCP14A0152T-E/MAY | Microchip Technology | IC GATE DRV HI-SIDE/LO-SIDE 6DFN | 87% | View |
| TC4431COA713 | Microchip Technology | IC GATE DRVR HI/LOW SIDE 8SOIC | 85% | View |
| TC4432EOA | Microchip Technology | IC GATE DRVR HI/LOW SIDE 8SOIC | 85% | View |
| TC4431VOA713 | Microchip Technology | IC GATE DRVR HI/LOW SIDE 8SOIC | 85% | View |
Submit your RFQ for LTC1693-5CMS8#PBF and get a quote within 24 hours.
