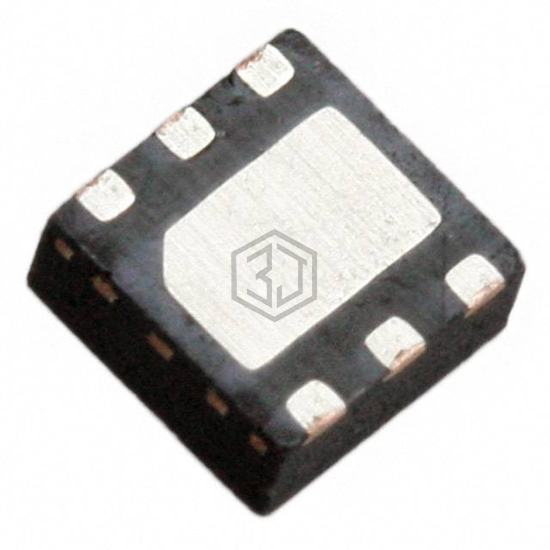

IC GATE DRV HI-SIDE/LO-SIDE 6DFN
MCP14A0152T-E/MAY is a PMIC - Gate Drivers manufactured by Microchip Technology. IC GATE DRV HI-SIDE/LO-SIDE 6DFN. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 150°C (TJ), voltage - supply 4.5V ~ 18V, package / case 6-VDFN Exposed Pad.
In Stock: 8,051
| Attribute | Value |
|---|---|
| Product Status | Active |
| Driven Configuration | Half-Bridge |
| Channel Type | Single |
| Number of Drivers | 1 |
| Gate Type | N-Channel, P-Channel MOSFET |
| Voltage - Supply | 4.5V ~ 18V |
| Logic Voltage - VIL, VIH | 0.8V, 2V |
| Current - Peak Output (Source, Sink) | 1.5A, 1.5A |
| Input Type | Non-Inverting |
| High Side Voltage - Max (Bootstrap) | - |
| Rise / Fall Time (Typ) | 11.5ns, 10ns |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | 6-VDFN Exposed Pad |
| Supplier Device Package | 6-DFN (2x2) |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MCP14A0151T-E/MAY | Microchip Technology | IC GATE DRV HI-SIDE/LO-SIDE 6DFN | 100% | View |
| MCP1416RT-E/OT | Microchip Technology | IC GATE DRVR LOW-SIDE SOT23-5 | 93% | View |
| TC4431VOA | Microchip Technology | IC GATE DRVR HI/LOW SIDE 8SOIC | 90% | View |
| TC4432EOA | Microchip Technology | IC GATE DRVR HI/LOW SIDE 8SOIC | 90% | View |
| TC4431VOA713 | Microchip Technology | IC GATE DRVR HI/LOW SIDE 8SOIC | 90% | View |
| TC4431EOA | Microchip Technology | IC GATE DRVR HI/LOW SIDE 8SOIC | 90% | View |
Submit your RFQ for MCP14A0152T-E/MAY and get a quote within 24 hours.
