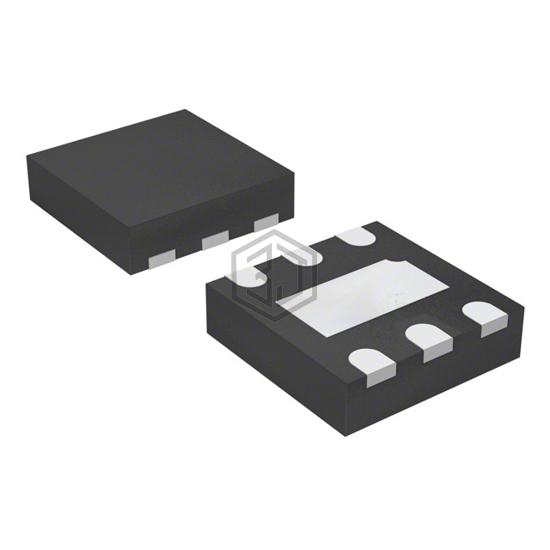

IC PWR SWITCH N-CHAN 1:1 6LFCSP
ADP196ACPZN-R7 is a PMIC - Power Distribution Switches, Load Drivers manufactured by Analog Devices Inc.. IC PWR SWITCH N-CHAN 1:1 6LFCSP. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 105°C (TJ), voltage - supply (vcc/vdd) Not Required, package / case 6-UDFN Exposed Pad, CSP.
In Stock: 2,576
| Attribute | Value |
|---|---|
| Product Status | Active |
| Switch Type | General Purpose |
| Number of Outputs | 1 |
| Ratio - Input:Output | 1:1 |
| Output Configuration | High Side |
| Output Type | N-Channel |
| Interface | On/Off |
| Voltage - Load | 1.8V ~ 5.5V |
| Voltage - Supply (Vcc/Vdd) | Not Required |
| Current - Output (Max) | 3A |
| Rds On (Typ) | 10mOhm |
| Input Type | Non-Inverting |
| Features | Slew Rate Controlled |
| Fault Protection | Current Limiting (Fixed), Over Temperature |
| Operating Temperature | -40°C ~ 105°C (TJ) |
| Mounting Type | Surface Mount |
| Supplier Device Package | 6-LFCSP-UD (2x2) |
| Package / Case | 6-UDFN Exposed Pad, CSP |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| ADP197ACPZN-02-R7 | Analog Devices Inc. | IC PWR SWITCH N-CHAN 1:1 6LFCSP | 100% | View |
| SIP32509DT-T1-GE3 | Vishay Siliconix | IC PWR SWTCH N-CHAN 1:1 TSOT23-6 | 91% | View |
| TPS2544RTET | Texas Instruments | IC PWR SWITCH N-CHAN 1:1 16WQFN | 84% | View |
| TPS2543RTER | Texas Instruments | IC PWR SWITCH N-CHAN 1:1 16WQFN | 84% | View |
| TPS2549IRTERQ1 | Texas Instruments | IC PWR SWITCH N-CHAN 1:1 16WQFN | 84% | View |
| TPS2544RTER | Texas Instruments | IC PWR SWITCH N-CHAN 1:1 16WQFN | 84% | View |
Submit your RFQ for ADP196ACPZN-R7 and get a quote within 24 hours.
