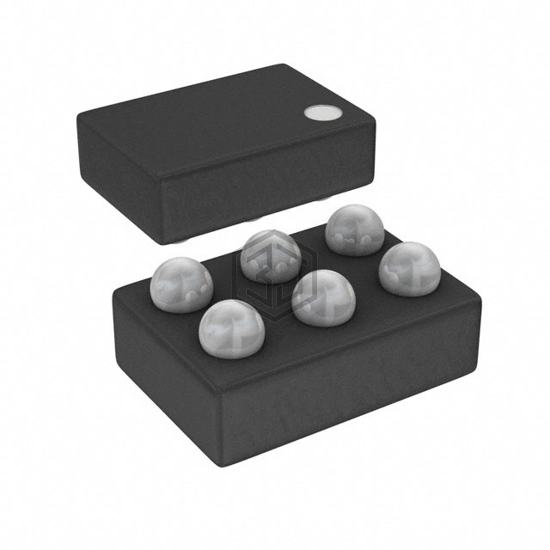

IC PWR SWITCH N-CHAN 1:1 6WLCSP
ADP196ACBZ-R7 is a PMIC - Power Distribution Switches, Load Drivers manufactured by Analog Devices Inc.. IC PWR SWITCH N-CHAN 1:1 6WLCSP. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 105°C (TJ), voltage - supply (vcc/vdd) Not Required, package / case 6-WFBGA, WLCSP.
In Stock: 3,000
| Attribute | Value |
|---|---|
| Product Status | Active |
| Switch Type | General Purpose |
| Number of Outputs | 1 |
| Ratio - Input:Output | 1:1 |
| Output Configuration | High Side |
| Output Type | N-Channel |
| Interface | On/Off |
| Voltage - Load | 1.8V ~ 5.5V |
| Voltage - Supply (Vcc/Vdd) | Not Required |
| Current - Output (Max) | 3A |
| Rds On (Typ) | 10mOhm |
| Input Type | Non-Inverting |
| Features | Slew Rate Controlled |
| Fault Protection | Current Limiting (Fixed), Over Temperature |
| Operating Temperature | -40°C ~ 105°C (TJ) |
| Mounting Type | Surface Mount |
| Supplier Device Package | 6-WLCSP (1.45x0.95) |
| Package / Case | 6-WFBGA, WLCSP |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| ADP196ACBZ-01-R7 | Analog Devices Inc. | IC PWR SWITCH N-CHAN 1:1 6WLCSP | 100% | View |
| TPS22810DRVT | Texas Instruments | IC PWR SWITCH N-CHAN 1:1 6WSON | 93% | View |
| TPS254900IRVCTQ1 | Texas Instruments | IC PWR SWITCH N-CHAN 1:1 20WQFN | 84% | View |
| BTS50901EJAXUMA1 | Infineon Technologies | IC PWR SWITCH N-CHAN 1:1 DSO-8 | 82% | View |
| TPS22971YZPT | Texas Instruments | IC PWR SWITCH N-CHAN 1:1 8DSBGA | 82% | View |
| TPS22925BNYPHT | Texas Instruments | IC PWR SWITCH N-CHAN 1:1 6DSBGA | 82% | View |
