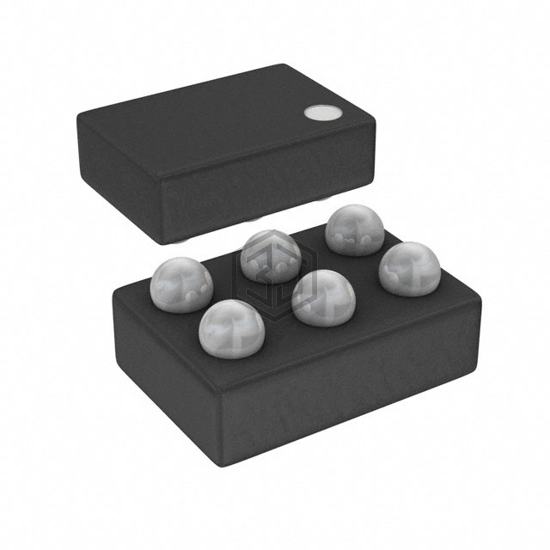

IC PWR SWITCH N-CHAN 1:1 6WLCSP
ADP1196ACBZ-R7 is a PMIC - Power Distribution Switches, Load Drivers manufactured by Analog Devices Inc.. IC PWR SWITCH N-CHAN 1:1 6WLCSP. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 105°C (TJ), voltage - supply (vcc/vdd) Not Required, package / case 6-WFBGA, WLCSP.
In Stock: 6,715
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Switch Type | General Purpose |
| Number of Outputs | 1 |
| Ratio - Input:Output | 1:1 |
| Output Configuration | High Side or Low Side |
| Output Type | N-Channel |
| Interface | On/Off |
| Voltage - Load | 1.83V ~ 5.5V |
| Voltage - Supply (Vcc/Vdd) | Not Required |
| Current - Output (Max) | 3A |
| Rds On (Typ) | 10mOhm |
| Input Type | Non-Inverting |
| Features | Slew Rate Controlled |
| Fault Protection | Current Limiting (Fixed), Over Temperature |
| Operating Temperature | -40°C ~ 105°C (TJ) |
| Mounting Type | Surface Mount |
| Supplier Device Package | 6-WLCSP (1.45x0.95) |
| Package / Case | 6-WFBGA, WLCSP |
ADP1196ACBZ-R7 is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| ADP1196ACBZ-02-R7 | Analog Devices Inc. | IC PWR SWITCH N-CHAN 1:1 6WLCSP | 100% | View |
| NCP3901FCCT1G | onsemi | IC PWR SWITCH N-CHAN 2:1 28WLCSP | 100% | View |
| SY20821B4ABC | Silergy Technology | 5.5V, 3A Power Switch, Rev Block | 94% | View |
| SY20821B3ABC | Silergy Technology | 5.5V, 3A Power Switch, Rev Block | 94% | View |
| SY20802UGC | Silergy Technology | OVP Switch with Current Monitor | 91% | View |
| NV6123 | Navitas Semiconductor, Inc. | IC PWR GANFAST N-CH 1:1 30QFN | 52% | View |
Submit your RFQ for ADP1196ACBZ-R7 and get a quote within 24 hours.
