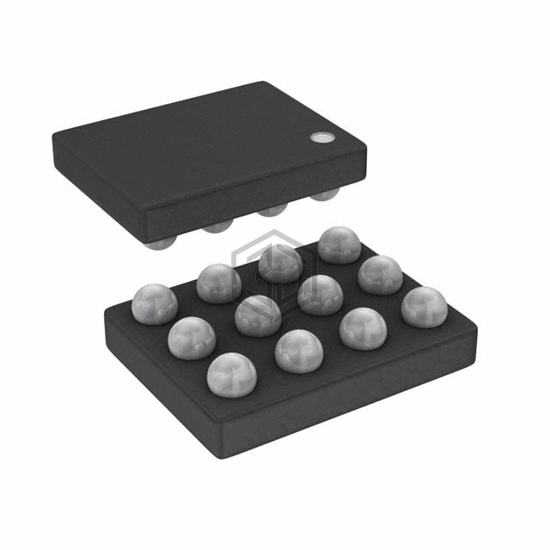

IC PWR SWITCH P-CHAN 1:1 12WLCSP
ADP1190ACBZ-R7 is a PMIC - Power Distribution Switches, Load Drivers manufactured by Analog Devices Inc.. IC PWR SWITCH P-CHAN 1:1 12WLCSP. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C (TJ), voltage - supply (vcc/vdd) Not Required, package / case 12-UFBGA, WLCSP.
In Stock: 281,909
| Attribute | Value |
|---|---|
| Product Status | Active |
| Switch Type | General Purpose |
| Number of Outputs | 5 (4 Signal) |
| Ratio - Input:Output | 1:1 |
| Output Configuration | High Side |
| Output Type | P-Channel |
| Interface | On/Off |
| Voltage - Load | 1.4V ~ 3.6V |
| Voltage - Supply (Vcc/Vdd) | Not Required |
| Current - Output (Max) | 1A |
| Rds On (Typ) | 65mOhm |
| Input Type | Non-Inverting |
| Features | Load Discharge |
| Fault Protection | - |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Mounting Type | Surface Mount |
| Supplier Device Package | 12-WLCSP (1.2x1.6) |
| Package / Case | 12-UFBGA, WLCSP |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| ADP1190AACBZ-R7 | Analog Devices Inc. | IC PWR SWITCH P-CHAN 1:1 12WLCSP | 100% | View |
| ADP198ACBZ-R7 | Analog Devices Inc. | IC PWR SWITCH P-CHAN 1:1 4WLCSP | 96% | View |
| ADP198ACPZ-R7 | Analog Devices Inc. | IC PWR SWITCH P-CHAN 1:1 8LFCSP | 96% | View |
| ADP198ACBZ-11-R7 | Analog Devices Inc. | IC PWR SWITCH P-CHAN 1:1 4WLCSP | 96% | View |
| SI1865DDL-T1-GE3 | Vishay Siliconix | IC PWR SWITCH P-CHAN 1:1 SC70-6 | 89% | View |
| ADP195ACBZ-R7 | Analog Devices Inc. | IC PWR SWITCH P-CHAN 1:1 4WLCSP | 89% | View |
Submit your RFQ for ADP1190ACBZ-R7 and get a quote within 24 hours.
