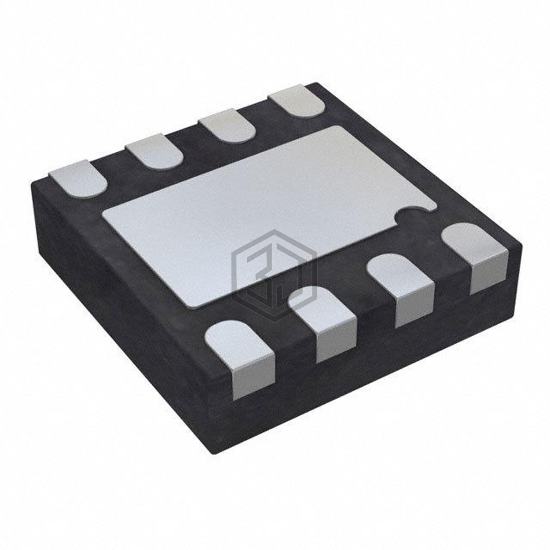

IC REG LIN POS ADJ 500MA 8LFCSP
ADM7170ACPZ-R7 is a PMIC - Voltage Regulators - Linear manufactured by Analog Devices Inc.. IC REG LIN POS ADJ 500MA 8LFCSP. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, package / case 8-WFDFN Exposed Pad, CSP, current - supply (max) 5.1 mA.
In Stock: 6,815
| Attribute | Value |
|---|---|
| Product Status | Active |
| Output Configuration | Positive |
| Output Type | Adjustable |
| Number of Regulators | 1 |
| Voltage - Input (Max) | 6.5V |
| Voltage - Output (Min/Fixed) | 1.2V |
| Voltage - Output (Max) | 5.8V |
| Voltage Dropout (Max) | 0.07V @ 500mA |
| Current - Output | 500mA |
| Current - Quiescent (Iq) | 2 mA |
| Current - Supply (Max) | 5.1 mA |
| PSRR | 60db ~ 20dB (100kHz ~ 1MHz) |
| Control Features | Enable, Soft Start |
| Protection Features | Over Current, Over Temperature |
| Operating Temperature | -40°C ~ 125°C |
| Mounting Type | Surface Mount |
| Package / Case | 8-WFDFN Exposed Pad, CSP |
| Supplier Device Package | 8-LFCSP-WD (3x3) |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| RTQ2533WGQV(2) | Richtek USA Inc. | IC REG LINEAR POS ADJ 3A 20VQFN | 62% | View |
| TPS7A5201RPST | Texas Instruments | IC REG LINEAR POS ADJ 2A 12VQFN | 61% | View |
| MP8904DD-LF-Z | Monolithic Power Systems Inc. | IC REG LINEAR POS ADJ 500MA 8QFN | 61% | View |
| TPS7A5201RPSR | Texas Instruments | IC REG LINEAR POS ADJ 2A 12VQFN | 61% | View |
| TPS7A5301RPSR | Texas Instruments | IC REG LINEAR POS ADJ 4A 12VQFN | 58% | View |
| TPS7A5301RPST | Texas Instruments | IC REG LINEAR POS ADJ 4A 12VQFN | 58% | View |
Submit your RFQ for ADM7170ACPZ-R7 and get a quote within 24 hours.
