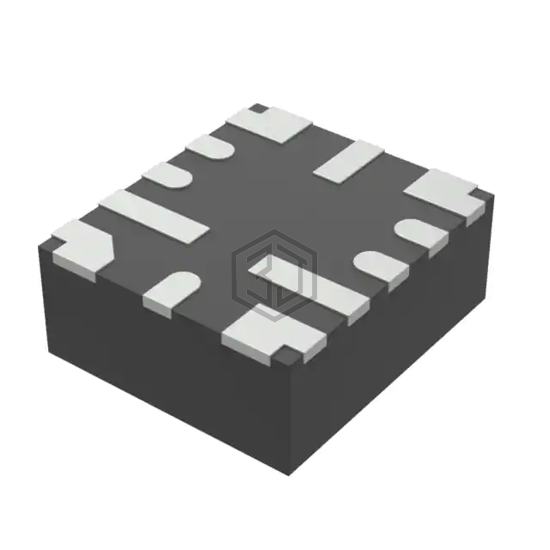

IC REG LINEAR POS ADJ 4A 12VQFN
TPS7A5301RPST is a PMIC - Voltage Regulators - Linear manufactured by Texas Instruments. IC REG LINEAR POS ADJ 4A 12VQFN. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C (TJ), package / case 12-VFQFN, current - supply (max) 5.5 mA.
In Stock: 7,837
| Attribute | Value |
|---|---|
| Product Status | Active |
| Output Configuration | Positive |
| Output Type | Adjustable |
| Number of Regulators | 1 |
| Voltage - Input (Max) | 6.5V |
| Voltage - Output (Min/Fixed) | 0.8V |
| Voltage - Output (Max) | 5.15V |
| Voltage Dropout (Max) | 0.375V @ 3A |
| Current - Output | 4A |
| Current - Quiescent (Iq) | 4 mA |
| Current - Supply (Max) | 5.5 mA |
| PSRR | 35dB ~ 44dB (10kHz ~ 500kHz) |
| Control Features | Enable, Power Good, Soft Start |
| Protection Features | Over Current, Over Temperature, Under Voltage Lockout (UVLO) |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | 12-VFQFN |
| Supplier Device Package | 12-VQFN-HR (2.2x2.5) |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| TPS7A5301RPSR | Texas Instruments | IC REG LINEAR POS ADJ 4A 12VQFN | 100% | View |
| RTQ2533WGQV(2) | Richtek USA Inc. | IC REG LINEAR POS ADJ 3A 20VQFN | 92% | View |
| RTQ2532WGQV(2) | Richtek USA Inc. | IC REG LIN ADJ 2A VQFN-20 | 84% | View |
| ISL80510IRAJZ-T7A | Renesas Electronics America Inc | IC REG LINEAR POS ADJ 1A 8DFN | 78% | View |
| RTQ2513TGQW | Richtek USA Inc. | IC REG LIN ADJ 3A WQFN-20 | 78% | View |
| ISL80505IRAJZ-T7A | Renesas Electronics America Inc | IC REG LINEAR POS ADJ 500MA 8DFN | 72% | View |
Submit your RFQ for TPS7A5301RPST and get a quote within 24 hours.
