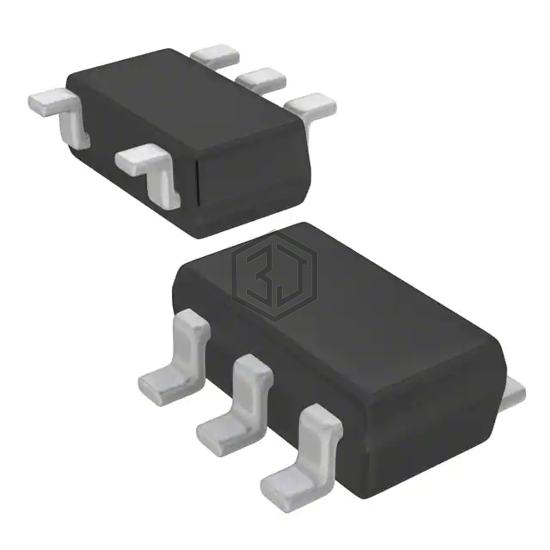

IC SWITCH SPST CMOS SOT23-5
ADG701LBRJZ-500RL7 is a Interface - Analog Switches, Multiplexers, Demultiplexers manufactured by Analog Devices Inc.. IC SWITCH SPST CMOS SOT23-5. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C (TA), package / case SC-74A, SOT-753, number of circuits 1.
In Stock: 1,890
| Attribute | Value |
|---|---|
| Product Status | Active |
| Switch Circuit | SPST - NO |
| Multiplexer/Demultiplexer Circuit | 1:1 |
| Number of Circuits | 1 |
| On-State Resistance (Max) | 3Ohm |
| Channel-to-Channel Matching (ΔRon) | - |
| Voltage - Supply, Single (V+) | 1.8V ~ 5V |
| Voltage - Supply, Dual (V±) | - |
| Switch Time (Ton, Toff) (Max) | 12ns, 8ns (Typ) |
| -3db Bandwidth | 200MHz |
| Charge Injection | 5pC |
| Channel Capacitance (CS(off), CD(off)) | 17pF, 17pF |
| Current - Leakage (IS(off)) (Max) | 250pA |
| Crosstalk | - |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | SC-74A, SOT-753 |
| Supplier Device Package | SOT-23-5 |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| ADG701BRMZ | Analog Devices Inc. | IC SWITCH SPST 8MSOP | 87% | View |
| ADG702BRTZ-REEL7 | Analog Devices Inc. | IC SWITCH SPST SOT23-6 | 87% | View |
| ADG702BRMZ-REEL7 | Analog Devices Inc. | IC SWITCH SPST 8MSOP | 87% | View |
| ADW54010Z-0REEL | Analog Devices Inc. | IC SWITCH DUAL SPDT 10MSOP | 76% | View |
| ADG736BRMZ-REEL | Analog Devices Inc. | IC SWITCH DUAL SPDT 10MSOP | 76% | View |
| PI5A23157ZUAEX | Diodes Incorporated | ANALOGSWITCH3V-5VU-QFN1520-10T&R | 64% | View |
Submit your RFQ for ADG701LBRJZ-500RL7 and get a quote within 24 hours.
