ANALOGSWITCH3V-5VU-QFN1520-10T&R

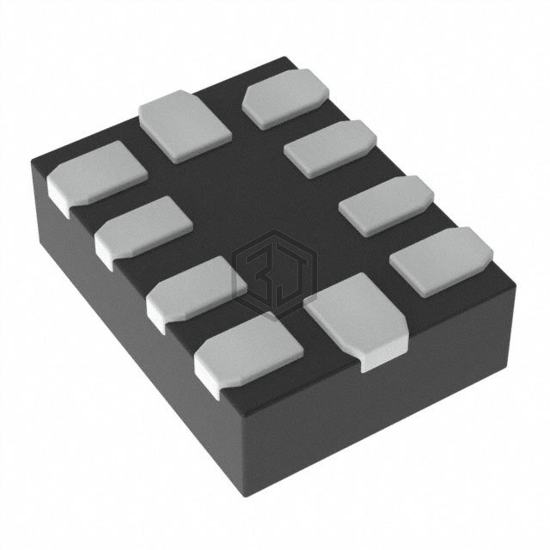

PI5A23157ZUAEX is a Interface - Analog Switches, Multiplexers, Demultiplexers manufactured by Diodes Incorporated. ANALOGSWITCH3V-5VU-QFN1520-10T&R. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, package / case 10-UFQFN, number of circuits 2.
In Stock: 4,163
| Attribute | Value |
|---|---|
| Product Status | Active |
| Switch Circuit | SPDT |
| Multiplexer/Demultiplexer Circuit | 2:1 |
| Number of Circuits | 2 |
| On-State Resistance (Max) | 15Ohm |
| Channel-to-Channel Matching (ΔRon) | 150mOhm |
| Voltage - Supply, Single (V+) | 1.65V ~ 5.5V |
| Voltage - Supply, Dual (V±) | 1.65V ~ 5.5V |
| Switch Time (Ton, Toff) (Max) | 12ns, 8ns |
| -3db Bandwidth | 220MHz |
| Charge Injection | 7pC |
| Channel Capacitance (CS(off), CD(off)) | 2.8pF |
| Current - Leakage (IS(off)) (Max) | 1µA |
| Crosstalk | -66dB @ 10MHz |
| Operating Temperature | -40°C ~ 125°C |
| Mounting Type | Surface Mount |
| Package / Case | 10-UFQFN |
| Supplier Device Package | 10-UQFN (1.5x2) |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| ADW54010Z-0REEL | Analog Devices Inc. | IC SWITCH DUAL SPDT 10MSOP | 73% | View |
| ADG736LBRMZ | Analog Devices Inc. | IC SWITCH DUAL SPDT 10MSOP | 73% | View |
| ADG736BRMZ-REEL | Analog Devices Inc. | IC SWITCH DUAL SPDT 10MSOP | 73% | View |
| ADG736LBRMZ-REEL7 | Analog Devices Inc. | IC SWITCH DUAL SPDT 10MSOP | 73% | View |
| TMUX1134PWR | Texas Instruments | IC SWITCH | 71% | View |
| TMUX1109RSVR | Texas Instruments | IC SWITCH DUAL 16UQFN | 58% | View |
