STACKED DIE, SPDT X 4

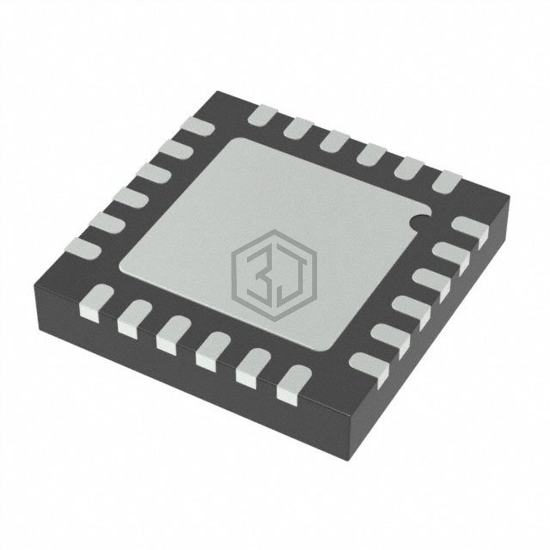

ADG1634LYCPZ-REEL7 is a Interface - Analog Switches, Multiplexers, Demultiplexers manufactured by Analog Devices Inc.. STACKED DIE, SPDT X 4. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, package / case 24-VFQFN Exposed Pad, CSP, number of circuits 4.
In Stock: 2,403
| Attribute | Value |
|---|---|
| Product Status | Active |
| Switch Circuit | SPDT |
| Multiplexer/Demultiplexer Circuit | 2:1 |
| Number of Circuits | 4 |
| On-State Resistance (Max) | 4.6Ohm |
| Channel-to-Channel Matching (ΔRon) | 120mOhm |
| Voltage - Supply, Single (V+) | 3.3V ~ 16V, ±3.3V ~ 8V |
| Voltage - Supply, Dual (V±) | 3.3V ~ 16V, ±3.3V ~ 8V |
| Switch Time (Ton, Toff) (Max) | 154ns, 195ns |
| -3db Bandwidth | 77MHz |
| Charge Injection | -12.4pC |
| Channel Capacitance (CS(off), CD(off)) | 19pF, 32pF |
| Current - Leakage (IS(off)) (Max) | 150pA |
| Crosstalk | -64dB @ 1MHz |
| Operating Temperature | -40°C ~ 125°C |
| Mounting Type | Surface Mount |
| Package / Case | 24-VFQFN Exposed Pad, CSP |
| Supplier Device Package | 24-LFCSP (4x4) |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| ADG1613BRUZ-REEL7 | Analog Devices Inc. | IC SWITCH QUAD SPST 16TSSOP | 63% | View |
| ADG1612BCPZ-REEL | Analog Devices Inc. | IC SWITCH QUAD SPST 16LFCSP | 63% | View |
| ADG1612BRUZ-REEL7 | Analog Devices Inc. | IC SWITCH QUAD SPST 16TSSOP | 63% | View |
| ADG1611BRUZ | Analog Devices Inc. | IC SWITCH QUAD SPST 16TSSOP | 63% | View |
| ADG1611BCPZ-REEL7 | Analog Devices Inc. | IC SWITCH QUAD SPST 16LFCSP | 63% | View |
| ADG1613BRUZ | Analog Devices Inc. | IC SWITCH QUAD SPST 16TSSOP | 63% | View |
Submit your RFQ for ADG1634LYCPZ-REEL7 and get a quote within 24 hours.
