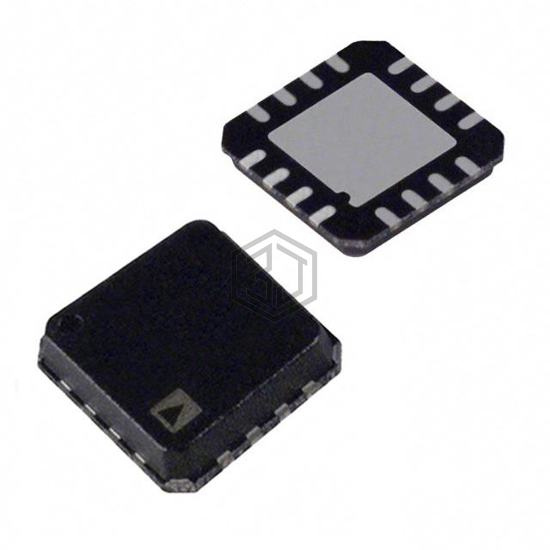

IC SWITCH QUAD SPST 16LFCSP
ADG1612BCPZ-REEL is a Interface - Analog Switches, Multiplexers, Demultiplexers manufactured by Analog Devices Inc.. IC SWITCH QUAD SPST 16LFCSP. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C (TA), package / case 16-VQFN Exposed Pad, CSP, number of circuits 4.
In Stock: 5,198
| Attribute | Value |
|---|---|
| Product Status | Active |
| Switch Circuit | SPST - NC |
| Multiplexer/Demultiplexer Circuit | 1:1 |
| Number of Circuits | 4 |
| On-State Resistance (Max) | 1.1Ohm |
| Channel-to-Channel Matching (ΔRon) | 30mOhm |
| Voltage - Supply, Single (V+) | 3.3V ~ 16V |
| Voltage - Supply, Dual (V±) | ±3.3V ~ 8V |
| Switch Time (Ton, Toff) (Max) | 156ns, 87ns |
| -3db Bandwidth | 38MHz |
| Charge Injection | 170pC |
| Channel Capacitance (CS(off), CD(off)) | 60pF, 60pF |
| Current - Leakage (IS(off)) (Max) | 300pA |
| Crosstalk | -110dB @ 1MHz |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 16-VQFN Exposed Pad, CSP |
| Supplier Device Package | 16-LFCSP-VQ (4x4) |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| ADG1613BRUZ-REEL7 | Analog Devices Inc. | IC SWITCH QUAD SPST 16TSSOP | 100% | View |
| ADG1612BRUZ-REEL7 | Analog Devices Inc. | IC SWITCH QUAD SPST 16TSSOP | 100% | View |
| ADG1611BRUZ | Analog Devices Inc. | IC SWITCH QUAD SPST 16TSSOP | 100% | View |
| ADG1613BCPZ-REEL | Analog Devices Inc. | IC SWITCH QUAD SPST 16LFCSP | 100% | View |
| ADG1611BCPZ-REEL7 | Analog Devices Inc. | IC SWITCH QUAD SPST 16LFCSP | 100% | View |
| ADG1613BRUZ | Analog Devices Inc. | IC SWITCH QUAD SPST 16TSSOP | 100% | View |
Submit your RFQ for ADG1612BCPZ-REEL and get a quote within 24 hours.
