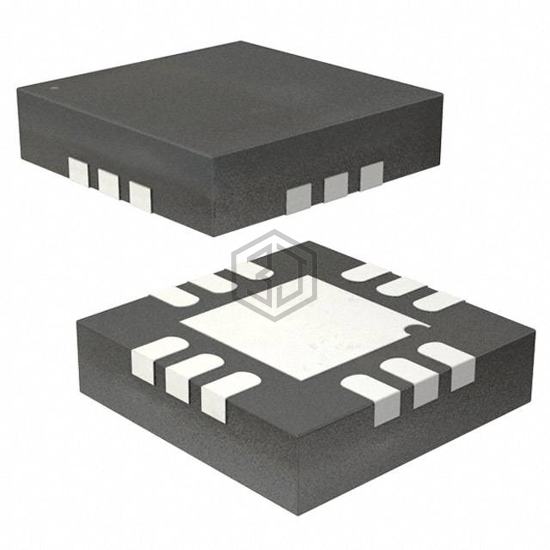

IC MULTIPLEXER 4X1 12LFCSP
ADG1204YCPZ-500RL7 is a Interface - Analog Switches, Multiplexers, Demultiplexers manufactured by Analog Devices Inc.. IC MULTIPLEXER 4X1 12LFCSP. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C (TA), package / case 12-WFQFN Exposed Pad, CSP, number of circuits 1.
In Stock: 6,488
| Attribute | Value |
|---|---|
| Product Status | Active |
| Switch Circuit | SP4T |
| Multiplexer/Demultiplexer Circuit | 4:1 |
| Number of Circuits | 1 |
| On-State Resistance (Max) | 190Ohm |
| Channel-to-Channel Matching (ΔRon) | 6Ohm |
| Voltage - Supply, Single (V+) | 12V |
| Voltage - Supply, Dual (V±) | ±15V |
| Switch Time (Ton, Toff) (Max) | 85ns, 110ns |
| -3db Bandwidth | 800MHz |
| Charge Injection | -0.7pC |
| Channel Capacitance (CS(off), CD(off)) | 1.5pF, 4.2pF |
| Current - Leakage (IS(off)) (Max) | 100pA |
| Crosstalk | -80dB @ 1MHz |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 12-WFQFN Exposed Pad, CSP |
| Supplier Device Package | 12-LFCSP (3x3) |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| ADG1204YRUZ-REEL7 | Analog Devices Inc. | IC MULTIPLEXER 4X1 14TSSOP | 100% | View |
| ADG1204YRUZ | Analog Devices Inc. | IC MULTIPLEXER 4X1 14TSSOP | 100% | View |
| ADG1204YCPZ-REEL7 | Analog Devices Inc. | IC MULTIPLEXER 4X1 12LFCSP | 100% | View |
| ADG1204YRUZ-REEL | Analog Devices Inc. | IC MULTIPLEXER 4X1 14TSSOP | 100% | View |
| TMUX6119DCNR | Texas Instruments | IC SWITCH SPDT SINGLE SOT23-8 | 78% | View |
| ADG1209YRZ | Analog Devices Inc. | IC MULTIPLEXER DUAL 4X1 16SOIC | 75% | View |
Submit your RFQ for ADG1204YCPZ-500RL7 and get a quote within 24 hours.
