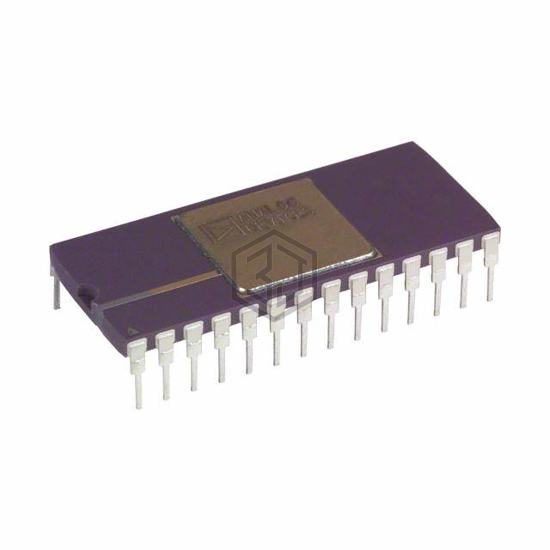

IC DAC 16BIT V-OUT 28CDIP
AD569BD is a Data Acquisition - Digital to Analog Converters (DAC) manufactured by Analog Devices Inc.. IC DAC 16BIT V-OUT 28CDIP. Key specifications: mounting type Through Hole, operating temperature -25°C ~ 85°C, voltage - supply, analog ±10.8V ~ 13.2V, package / case 28-CDIP (0.600", 15.24mm).
In Stock: 626
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Number of Bits | 16 |
| Number of D/A Converters | 1 |
| Settling Time | 6µs |
| Output Type | Voltage - Buffered |
| Differential Output | No |
| Data Interface | Parallel |
| Reference Type | External |
| Voltage - Supply, Analog | ±10.8V ~ 13.2V |
| Voltage - Supply, Digital | - |
| INL/DNL (LSB) | ±0.020, ±0.5 |
| Architecture | Segmented DAC |
| Operating Temperature | -25°C ~ 85°C |
| Package / Case | 28-CDIP (0.600", 15.24mm) |
| Supplier Device Package | 28-CDIP |
| Mounting Type | Through Hole |
AD569BD is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| AD569SD | Analog Devices Inc. | IC DAC 16BIT V-OUT 28CDIP | 100% | View |
| MAX518BEPA+ | Analog Devices Inc./Maxim Integrated | IC DAC 8BIT V-OUT 8DIP | 81% | View |
| MAX505AENG | Analog Devices Inc./Maxim Integrated | IC DAC 8BIT V-OUT 24DIP | 71% | View |
| MAX510AEPE+ | Analog Devices Inc./Maxim Integrated | IC DAC 8BIT V-OUT 16DIP | 71% | View |
| DAC8841FW | Analog Devices Inc. | 8-BIT, OCTAL TRIMDAC | 68% | View |
| DAC8840FW | Analog Devices Inc. | 8-BIT, OCTAL TRIMDAC | 68% | View |
Submit your RFQ for AD569BD and get a quote within 24 hours.
