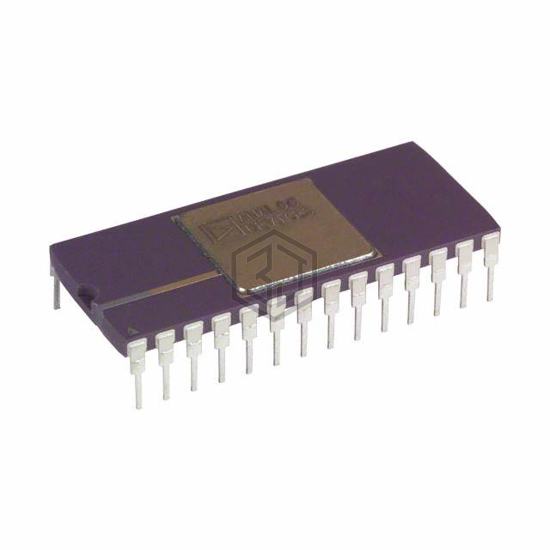

IC DAC 16BIT V-OUT 28CDIP
AD569SD is a Data Acquisition - Digital to Analog Converters (DAC) manufactured by Analog Devices Inc.. IC DAC 16BIT V-OUT 28CDIP. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 125°C, voltage - supply, analog ±10.8V ~ 13.2V, package / case 28-CDIP (0.600", 15.24mm).
In Stock: 1,040
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Number of Bits | 16 |
| Number of D/A Converters | 1 |
| Settling Time | 6µs |
| Output Type | Voltage - Buffered |
| Differential Output | No |
| Data Interface | Parallel |
| Reference Type | External |
| Voltage - Supply, Analog | ±10.8V ~ 13.2V |
| Voltage - Supply, Digital | - |
| INL/DNL (LSB) | -, ±1 (Max) |
| Architecture | Segmented DAC |
| Operating Temperature | -55°C ~ 125°C |
| Package / Case | 28-CDIP (0.600", 15.24mm) |
| Supplier Device Package | 28-CDIP |
| Mounting Type | Through Hole |
AD569SD is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| AD7845SQ | Analog Devices Inc. | IC DAC 12BIT V-OUT 24CDIP | 90% | View |
| 5962-8969701XA | Analog Devices Inc. | IC DAC 16BIT LC2MOS VOUT 28CDIP | 86% | View |
| AD7837SQ | Analog Devices Inc. | IC DAC 12BIT V-OUT 24CDIP | 80% | View |
| AD7847SQ | Analog Devices Inc. | DAC, 2 CH, PARALLEL, WORD INPUT | 80% | View |
| PM7226AR/883C | Analog Devices Inc. | 8-BIT DAC WITH VOLTAGE OUTPUT | 65% | View |
| 5962-8866302LX | Analog Devices Inc. | IC DAC 8BIT OCTAL 24CERDIP | 62% | View |
Submit your RFQ for AD569SD and get a quote within 24 hours.
