Analog Devices Inc./Maxim Integrated

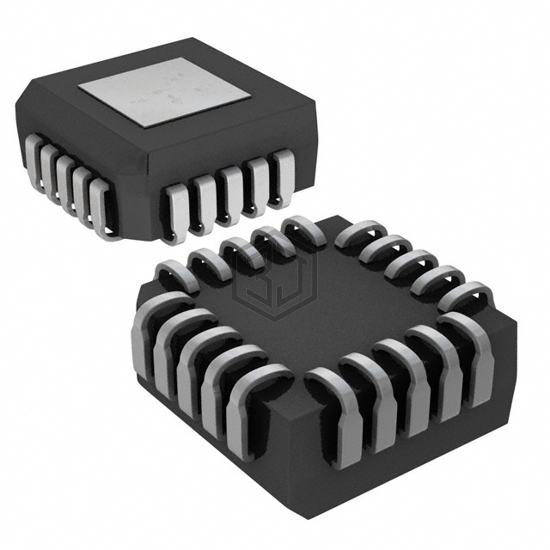

IC DAC 8BIT V-OUT 20PLCC
MX7226KP+ is a Data Acquisition - Digital to Analog Converters (DAC) manufactured by Analog Devices Inc./Maxim Integrated. IC DAC 8BIT V-OUT 20PLCC. Key specifications: mounting type Surface Mount, operating temperature 0°C ~ 70°C, voltage - supply, digital 14.25V ~ 15.75V, package / case 20-LCC (J-Lead).
In Stock: 9,534
| Attribute | Value |
|---|---|
| Product Status | Active |
| Number of Bits | 8 |
| Number of D/A Converters | 4 |
| Settling Time | 4µs |
| Output Type | Voltage - Buffered |
| Differential Output | No |
| Data Interface | Parallel |
| Reference Type | External |
| Voltage - Supply, Analog | 11.4V ~ 16.5V, -5V |
| Voltage - Supply, Digital | 14.25V ~ 15.75V |
| INL/DNL (LSB) | ±1 (Max), ±1 (Max) |
| Architecture | R-2R |
| Operating Temperature | 0°C ~ 70°C |
| Package / Case | 20-LCC (J-Lead) |
| Supplier Device Package | 20-PLCC (9x9) |
| Mounting Type | Surface Mount |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MX7226KCWP+ | Analog Devices Inc./Maxim Integrated | IC DAC 8BIT V-OUT 20SOIC | 100% | View |
| MX7226KEWP+ | Analog Devices Inc./Maxim Integrated | IC DAC 8BIT V-OUT 20SOIC | 100% | View |
| MX7847AR+ | Analog Devices Inc./Maxim Integrated | IC DAC 12BIT V-OUT 24SOIC | 85% | View |
| MX7847BR+ | Analog Devices Inc./Maxim Integrated | IC DAC 12BIT V-OUT 24SOIC | 85% | View |
| LTC1650AIS#PBF | Analog Devices Inc. | IC DAC 16BIT V-OUT 16SOIC | 65% | View |
| MAX5594EUG+ | Analog Devices Inc./Maxim Integrated | IC DAC 8BIT V-OUT 24TSSOP | 64% | View |
Submit your RFQ for MX7226KP+ and get a quote within 24 hours.
