Analog Devices Inc./Maxim Integrated

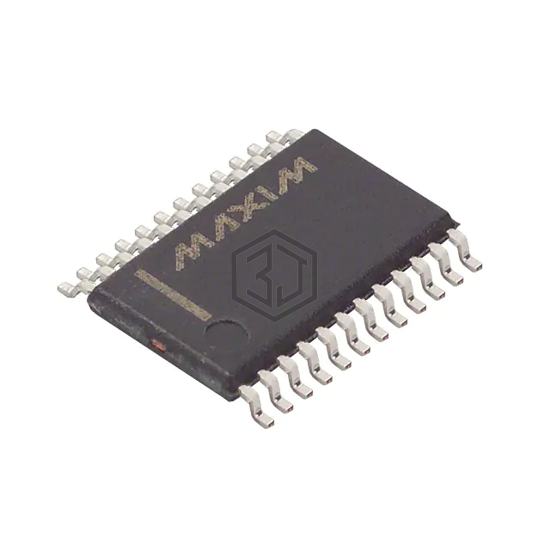

IC DAC 8BIT V-OUT 24TSSOP
MAX5594EUG+ is a Data Acquisition - Digital to Analog Converters (DAC) manufactured by Analog Devices Inc./Maxim Integrated. IC DAC 8BIT V-OUT 24TSSOP. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, voltage - supply, digital 1.8V ~ 5.25V, package / case 24-TSSOP (0.173", 4.40mm Width).
In Stock: 1,032
| Attribute | Value |
|---|---|
| Product Status | Active |
| Number of Bits | 8 |
| Number of D/A Converters | 8 |
| Settling Time | 4µs |
| Output Type | Voltage - Buffered |
| Differential Output | No |
| Data Interface | SPI, DSP |
| Reference Type | External |
| Voltage - Supply, Analog | 2.7V ~ 5.25V |
| Voltage - Supply, Digital | 1.8V ~ 5.25V |
| INL/DNL (LSB) | ±0.125, ±1 (Max) |
| Architecture | R-2R |
| Operating Temperature | -40°C ~ 85°C |
| Package / Case | 24-TSSOP (0.173", 4.40mm Width) |
| Supplier Device Package | 24-TSSOP |
| Mounting Type | Surface Mount |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MAX5595EUI+T | Analog Devices Inc./Maxim Integrated | IC DAC 8BIT V-OUT 28TSSOP | 100% | View |
| MX7847AR+ | Analog Devices Inc./Maxim Integrated | IC DAC 12BIT V-OUT 24SOIC | 75% | View |
| MX7847BR+ | Analog Devices Inc./Maxim Integrated | IC DAC 12BIT V-OUT 24SOIC | 75% | View |
| AD5060ARJZ-2500RL7 | Analog Devices Inc. | IC DAC 16BIT V-OUT SOT23-8 | 74% | View |
| AD5061BRJZ-2REEL7 | Analog Devices Inc. | IC DAC 16BIT V-OUT SOT23-8 | 74% | View |
| MX7226KEWP+ | Analog Devices Inc./Maxim Integrated | IC DAC 8BIT V-OUT 20SOIC | 64% | View |
Submit your RFQ for MAX5594EUG+ and get a quote within 24 hours.
