Analog Devices Inc./Maxim Integrated

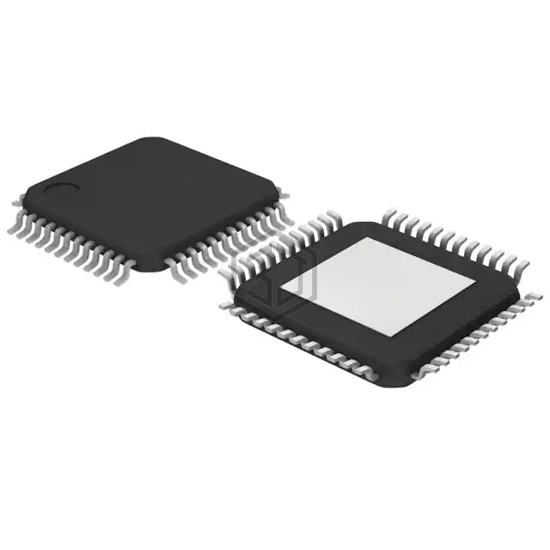

IC DAC 10BIT DUAL 300MSPS 48TQFP
MAX5858ECM+D is a Data Acquisition - Digital to Analog Converters (DAC) manufactured by Analog Devices Inc./Maxim Integrated. IC DAC 10BIT DUAL 300MSPS 48TQFP. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, voltage - supply, digital 2.7V ~ 3.3V, package / case 48-TQFP Exposed Pad.
In Stock: 3,515
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Number of Bits | 10 |
| Number of D/A Converters | 2 |
| Settling Time | 11µs (Typ) |
| Output Type | Current - Unbuffered |
| Differential Output | Yes |
| Data Interface | Parallel |
| Reference Type | External, Internal |
| Voltage - Supply, Analog | 2.7V ~ 3.3V |
| Voltage - Supply, Digital | 2.7V ~ 3.3V |
| INL/DNL (LSB) | ±0.5, ±0.25 |
| Architecture | Oversampling Interpolating DAC |
| Operating Temperature | -40°C ~ 85°C |
| Package / Case | 48-TQFP Exposed Pad |
| Supplier Device Package | 48-TQFP-EP (7x7) |
| Mounting Type | Surface Mount |
MAX5858ECM+D is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MAX5856AECM+TD | Analog Devices Inc./Maxim Integrated | IC DAC 8BIT A-OUT 48TQFP | 98% | View |
| MAX5893EGK+TD | Analog Devices Inc./Maxim Integrated | IC DAC 12BIT A-OUT 68QFN | 90% | View |
| MAX5886EGK+TD | Analog Devices Inc./Maxim Integrated | IC DAC 12BIT A-OUT 68QFN | 89% | View |
| MAX5886EGK+D | Analog Devices Inc./Maxim Integrated | IC DAC 12BIT A-OUT 68QFN | 89% | View |
| MAX5883EGM+D | Analog Devices Inc./Maxim Integrated | IC DAC 12BIT A-OUT 48QFN | 89% | View |
| MAX5887EGK+TD | Analog Devices Inc./Maxim Integrated | IC DAC 14BIT A-OUT 68QFN | 87% | View |
Submit your RFQ for MAX5858ECM+D and get a quote within 24 hours.
