Analog Devices Inc./Maxim Integrated
IC DAC 8BIT A-OUT 48TQFP

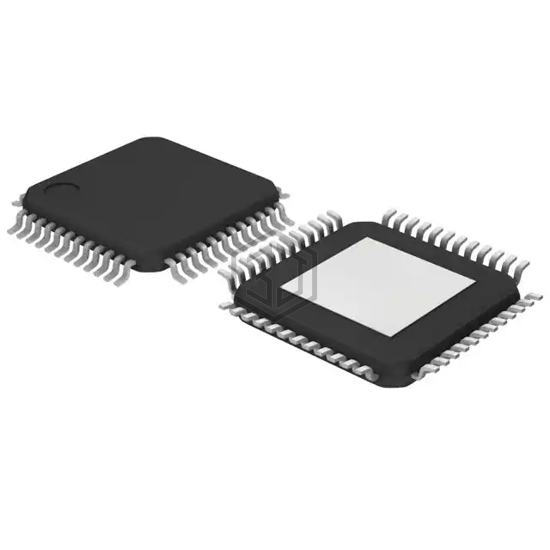

MAX5856AECM+TD is a Data Acquisition - Digital to Analog Converters (DAC) manufactured by Analog Devices Inc./Maxim Integrated. IC DAC 8BIT A-OUT 48TQFP. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, voltage - supply, digital 2.7V ~ 3.3V, package / case 48-TQFP Exposed Pad.
In Stock: 6,409
| Attribute | Value |
|---|---|
| Product Status | Active |
| Number of Bits | 8 |
| Number of D/A Converters | 2 |
| Settling Time | 11µs (Typ) |
| Output Type | Current - Unbuffered |
| Differential Output | Yes |
| Data Interface | Parallel |
| Reference Type | External, Internal |
| Voltage - Supply, Analog | 2.7V ~ 3.3V |
| Voltage - Supply, Digital | 2.7V ~ 3.3V |
| INL/DNL (LSB) | ±0.15, ±0.07 |
| Architecture | Oversampling Interpolating DAC |
| Operating Temperature | -40°C ~ 85°C |
| Package / Case | 48-TQFP Exposed Pad |
| Supplier Device Package | 48-TQFP-EP (7x7) |
| Mounting Type | Surface Mount |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MAX5886EGK+TD | Analog Devices Inc./Maxim Integrated | IC DAC 12BIT A-OUT 68QFN | 87% | View |
| MAX5893EGK+TD | Analog Devices Inc./Maxim Integrated | IC DAC 12BIT A-OUT 68QFN | 87% | View |
| MAX5883EGM+D | Analog Devices Inc./Maxim Integrated | IC DAC 12BIT A-OUT 48QFN | 87% | View |
| MAX5887EGK+TD | Analog Devices Inc./Maxim Integrated | IC DAC 14BIT A-OUT 68QFN | 85% | View |
| MAX5898EGK+D | Analog Devices Inc./Maxim Integrated | IC DAC 16BIT A-OUT 68QFN | 85% | View |
| MAX5885EGM+TD | Analog Devices Inc./Maxim Integrated | IC DAC 16BIT A-OUT 48QFN | 84% | View |
Submit your RFQ for MAX5856AECM+TD and get a quote within 24 hours.
