Analog Devices Inc./Maxim Integrated
IC PWR DRIVER N-CHAN 1:8 20TSSOP

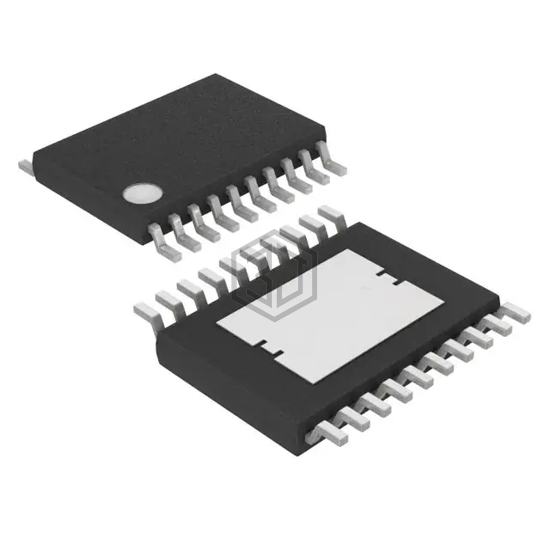

MAX4821EUP+ is a PMIC - Power Distribution Switches, Load Drivers manufactured by Analog Devices Inc./Maxim Integrated. IC PWR DRIVER N-CHAN 1:8 20TSSOP. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C (TA), voltage - load 2.3V ~ 5.5V, package / case 20-TSSOP (0.173", 4.40mm Width) Exposed Pad.
In Stock: 5,059
| Attribute | Value |
|---|---|
| Product Status | Active |
| Switch Type | Relay, Solenoid Driver |
| Number of Outputs | 8 |
| Ratio - Input:Output | 1:8 |
| Output Configuration | Low Side |
| Output Type | N-Channel |
| Interface | Parallel, Serial |
| Voltage - Load | 2.3V ~ 5.5V |
| Voltage - Supply (Vcc/Vdd) | - |
| Current - Output (Max) | 70mA |
| Rds On (Typ) | 2Ohm |
| Input Type | - |
| Features | - |
| Fault Protection | - |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Supplier Device Package | 20-TSSOP-EP |
| Package / Case | 20-TSSOP (0.173", 4.40mm Width) Exposed Pad |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MAX4820ETP+ | Analog Devices Inc./Maxim Integrated | IC PWR DRIVER N-CHAN 1:8 20TQFN | 100% | View |
| MAX4820ETP+T | Analog Devices Inc./Maxim Integrated | IC PWR DRIVER N-CHAN 1:8 20TQFN | 100% | View |
| MAX4820EUP+ | Analog Devices Inc./Maxim Integrated | IC PWR DRIVER N-CHAN 1:8 20TSSOP | 100% | View |
| MAX4825ETP+ | Analog Devices Inc./Maxim Integrated | IC PWR DRIVER N-CHAN 1:8 20TQFN | 100% | View |
| MAX4820EUP+T | Analog Devices Inc./Maxim Integrated | IC PWR DRIVER N-CHAN 1:8 20TSSOP | 100% | View |
| MAX4821ETP+ | Analog Devices Inc./Maxim Integrated | IC PWR DRIVER N-CHAN 1:8 20TQFN | 100% | View |
Submit your RFQ for MAX4821EUP+ and get a quote within 24 hours.
