Analog Devices Inc./Maxim Integrated

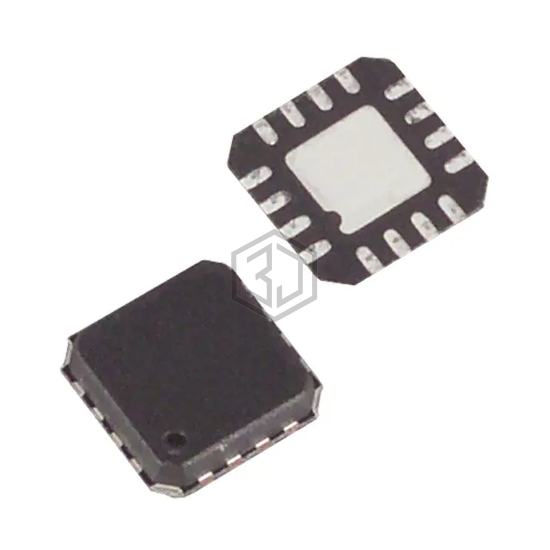

IC MULTIPLEXER DUAL 4X1 16QFN
MAX4782EGE+T is a Interface - Analog Switches, Multiplexers, Demultiplexers manufactured by Analog Devices Inc./Maxim Integrated. IC MULTIPLEXER DUAL 4X1 16QFN. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C (TA), package / case 16-VQFN Exposed Pad, number of circuits 2.
In Stock: 5,093
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Switch Circuit | SP4T |
| Multiplexer/Demultiplexer Circuit | 4:1 |
| Number of Circuits | 2 |
| On-State Resistance (Max) | 1Ohm |
| Channel-to-Channel Matching (ΔRon) | 300mOhm |
| Voltage - Supply, Single (V+) | 1.6V ~ 3.6V |
| Voltage - Supply, Dual (V±) | - |
| Switch Time (Ton, Toff) (Max) | 25ns, 15ns |
| -3db Bandwidth | - |
| Charge Injection | -110pC |
| Channel Capacitance (CS(off), CD(off)) | 38pF, 158pF |
| Current - Leakage (IS(off)) (Max) | 2nA |
| Crosstalk | -80dB @ 1MHz |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 16-VQFN Exposed Pad |
| Supplier Device Package | 16-QFN (4x4) |
MAX4782EGE+T is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MAX4781ETE+ | Analog Devices Inc./Maxim Integrated | IC MULTIPLEXER 8X1 16TQFN | 91% | View |
| MAX4784ETE+ | Analog Devices Inc./Maxim Integrated | IC MULTIPLEXER QUAD 2X1 16TQFN | 81% | View |
| MAX4734EUB+ | Analog Devices Inc./Maxim Integrated | IC MULTIPLEXER 4X1 10UMAX | 81% | View |
| MAX4784EUE+ | Analog Devices Inc./Maxim Integrated | IC MULTIPLEXER QUAD 2X1 16TSSOP | 81% | View |
| ADG811YCPZ-REEL7 | Analog Devices Inc. | IC SWITCH QUAD SPST 16LFCSP | 79% | View |
| NX3L1G53GT,115 | NXP USA Inc. | IC SWITCH SPDT 8XSON | 68% | View |
Submit your RFQ for MAX4782EGE+T and get a quote within 24 hours.
