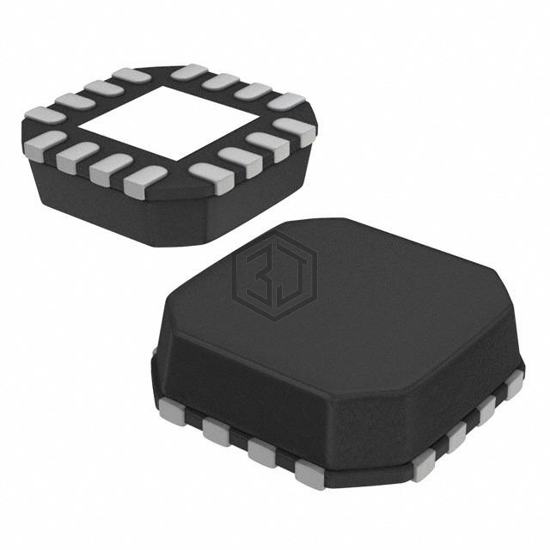

IC SWITCH QUAD SPST 16LFCSP
ADG811YCPZ-REEL7 is a Interface - Analog Switches, Multiplexers, Demultiplexers manufactured by Analog Devices Inc.. IC SWITCH QUAD SPST 16LFCSP. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C (TA), package / case 16-VFQFN Exposed Pad, CSP, number of circuits 4.
In Stock: 11,610
| Attribute | Value |
|---|---|
| Product Status | Active |
| Switch Circuit | SPST - NC |
| Multiplexer/Demultiplexer Circuit | 1:1 |
| Number of Circuits | 4 |
| On-State Resistance (Max) | 650mOhm |
| Channel-to-Channel Matching (ΔRon) | 40mOhm |
| Voltage - Supply, Single (V+) | 1.65V ~ 3.6V |
| Voltage - Supply, Dual (V±) | - |
| Switch Time (Ton, Toff) (Max) | 25ns, 5ns |
| -3db Bandwidth | 90MHz |
| Charge Injection | 30pC |
| Channel Capacitance (CS(off), CD(off)) | 30pF, 35pF |
| Current - Leakage (IS(off)) (Max) | 1nA |
| Crosstalk | -90dB @ 100kHz |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 16-VFQFN Exposed Pad, CSP |
| Supplier Device Package | 16-LFCSP-VQ (3x3) |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| ADG811YRUZ | Analog Devices Inc. | IC SWITCH QUAD SPST 16TSSOP | 100% | View |
| ADG812YRU-REEL7 | Analog Devices Inc. | IC SWITCH QUAD SPST 16TSSOP | 100% | View |
| ADG812YRUZ-REEL7 | Analog Devices Inc. | IC SWITCH QUAD SPST 16TSSOP | 100% | View |
| ADG811YCPZ-REEL | Analog Devices Inc. | IC SWITCH QUAD SPST 16LFCSP | 100% | View |
| NX3L2G384GM,125 | NXP Semiconductors | NX3L2G384 - DUAL LOW-OHMIC SINGL | 66% | View |
| NX3L1G53GT,115 | NXP USA Inc. | IC SWITCH SPDT 8XSON | 60% | View |
