Analog Devices Inc./Maxim Integrated

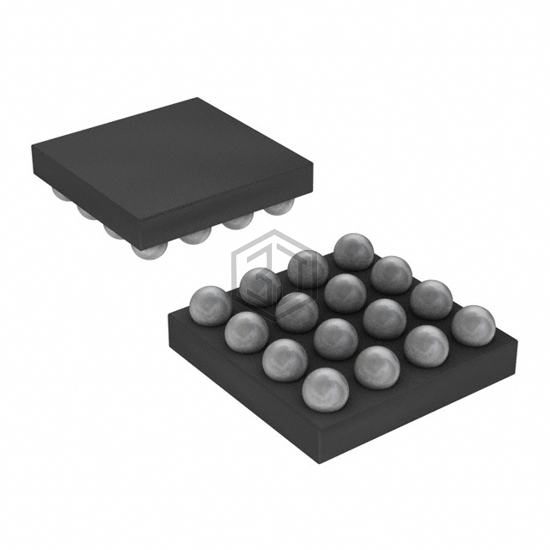

IC SWITCH QUAD SPST 16UCSP
MAX4737EBE is a Interface - Analog Switches, Multiplexers, Demultiplexers manufactured by Analog Devices Inc./Maxim Integrated. IC SWITCH QUAD SPST 16UCSP. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C (TA), package / case 16-WFBGA, CSPBGA, number of circuits 4.
In Stock: 2,157
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Switch Circuit | SPST - NO |
| Multiplexer/Demultiplexer Circuit | 1:1 |
| Number of Circuits | 4 |
| On-State Resistance (Max) | 4.5Ohm |
| Channel-to-Channel Matching (ΔRon) | 100mOhm |
| Voltage - Supply, Single (V+) | 1.8V ~ 5.5V |
| Voltage - Supply, Dual (V±) | 1.8V ~ 5.5V |
| Switch Time (Ton, Toff) (Max) | 80ns, 40ns |
| -3db Bandwidth | 300MHz |
| Charge Injection | 5pC |
| Channel Capacitance (CS(off), CD(off)) | 9pF |
| Current - Leakage (IS(off)) (Max) | 500pA |
| Crosstalk | -80dB @ 10MHz |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 16-WFBGA, CSPBGA |
| Supplier Device Package | 16-UCSP (2x2) |
MAX4737EBE is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MAX4737EUD+TG069 | Analog Devices Inc./Maxim Integrated | IC SWITCH QUAD SPST 14TSSOP | 100% | View |
| MAX4721EUA+T | Analog Devices Inc./Maxim Integrated | IC SWITCH DUAL SPST 8UMAX | 94% | View |
| ISL43141IRZ | Renesas Electronics America Inc | IC SWITCH QUAD SPST 16QFN | 83% | View |
| ISL43142IRZ-T | Renesas Electronics America Inc | IC SWITCH QUAD SPST 16QFN | 83% | View |
| ISL84522IBZ-T | Renesas Electronics America Inc | IC SWITCH QUAD SPST 16SOIC | 71% | View |
| ISL84522IBZ | Renesas Electronics America Inc | IC SWITCH QUAD SPST 16SOIC | 71% | View |
Submit your RFQ for MAX4737EBE and get a quote within 24 hours.
